unihangul-support.c File Reference

Functions for converting Hangul letters into syllables. More...

#include <stdio.h>
#include "hangul.h"

Include dependency graph for unihangul-support.c:

Go to the source code of this file.

Functions
unsigned	hangul_read_base8 (FILE *infp, unsigned char base[][32])
	Read hangul-base.hex file into a unsigned char array.
unsigned	hangul_read_base16 (FILE *infp, unsigned base[][16])
	Read hangul-base.hex file into a unsigned array.
void	hangul_decompose (unsigned codept, int *initial, int *medial, int *final)
	Decompose a Hangul Syllables code point into three letters.
unsigned	hangul_compose (int initial, int medial, int final)
	Compose a Hangul syllable into a code point, or 0 if none exists.

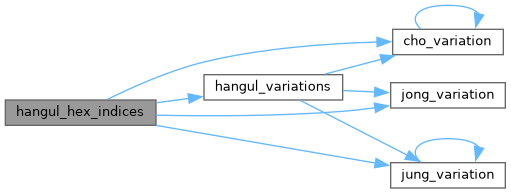

void	hangul_hex_indices (int choseong, int jungseong, int jongseong, int *cho_index, int *jung_index, int *jong_index)
	Determine index values to the bitmaps for a syllable's components.

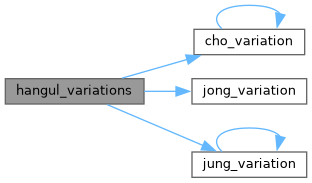

void	hangul_variations (int choseong, int jungseong, int jongseong, int *cho_var, int *jung_var, int *jong_var)
	Determine the variations of each letter in a Hangul syllable.
int	cho_variation (int choseong, int jungseong, int jongseong)
	Return the Johab 6/3/1 choseong variation for a syllable.
int	is_wide_vowel (int vowel)
	Whether vowel has rightmost vertical stroke to the right.
int	jung_variation (int choseong, int jungseong, int jongseong)
	Return the Johab 6/3/1 jungseong variation.
int	jong_variation (int choseong, int jungseong, int jongseong)
	Return the Johab 6/3/1 jongseong variation.

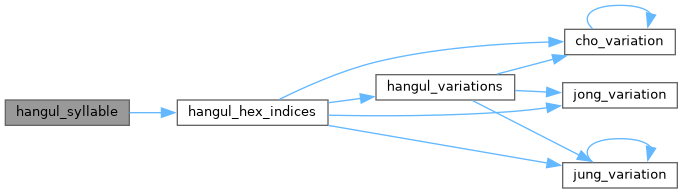

void	hangul_syllable (int choseong, int jungseong, int jongseong, unsigned char hangul_base[][32], unsigned char *syllable)
	Given letters in a Hangul syllable, return a glyph.
int	glyph_overlap (unsigned *glyph1, unsigned *glyph2)
	See if two glyphs overlap.
void	combine_glyphs (unsigned *glyph1, unsigned *glyph2, unsigned *combined_glyph)
	Combine two glyphs into one glyph.
void	print_glyph_txt (FILE *fp, unsigned codept, unsigned *this_glyph)
	Print one glyph in Unifont hexdraw plain text style.
void	print_glyph_hex (FILE *fp, unsigned codept, unsigned *this_glyph)
	Print one glyph in Unifont hexdraw hexadecimal string style.
void	one_jamo (unsigned glyph_table[MAX_GLYPHS][16], unsigned jamo, unsigned *jamo_glyph)
	Convert Hangul Jamo choseong, jungseong, and jongseong into a glyph.
void	combined_jamo (unsigned glyph_table[MAX_GLYPHS][16], unsigned cho, unsigned jung, unsigned jong, unsigned *combined_glyph)
	Convert Hangul Jamo choseong, jungseong, and jongseong into a glyph.

Detailed Description

Functions for converting Hangul letters into syllables.

This file contains functions for reading in Hangul letters arranged in a Johab 6/3/1 pattern and composing syllables with them. One function maps an iniital letter (choseong), medial letter (jungseong), and final letter (jongseong) into the Hangul Syllables Unicode block, U+AC00..U+D7A3. Other functions allow formation of glyphs that include the ancient Hangul letters that Hanterm supported. More can be added if desired, with appropriate changes to start positions and lengths defined in "hangul.h".

Author

Paul Hardy

Copyright

Copyright © 2023 Paul Hardy

Definition in file unihangul-support.c.

Function Documentation

cho_variation()

int cho_variation	(	int	choseong,
		int	jungseong,
		int	jongseong
	)

Return the Johab 6/3/1 choseong variation for a syllable.

This function takes the two or three (if jongseong is included) letters that comprise a syllable and determine the variation of the initial consonant (choseong).

Each choseong has 6 variations:

Variation Occurrence

---

0 Choseong with a vertical vowel such as "A". 1 Choseong with a horizontal vowel such as "O". 2 Choseong with a vertical and horizontal vowel such as "WA". 3 Same as variation 0, but with jongseong (final consonant). 4 Same as variation 1, but with jongseong (final consonant). Also a horizontal vowel pointing down, such as U and YU. 5 Same as variation 2, but with jongseong (final consonant). Also a horizontal vowel pointing down with vertical element, such as WEO, WE, and WI.

In addition, if the vowel is horizontal and a downward-pointing stroke as in the modern letters U, WEO, WE, WI, and YU, and in archaic letters YU-YEO, YU-YE, YU-I, araea, and araea-i, then 3 is added to the initial variation of 0 to 2, resulting in a choseong variation of 3 to 5, respectively.

Parameters

[in]	choseong	The 1st letter in the syllable.
[in]	jungseong	The 2nd letter in the syllable.
[in]	jongseong	The 3rd letter in the syllable.

Returns

The choseong variation, 0 to 5.

Definition at line 350 of file unihangul-support.c.

                                                           {
   int cho_variation;  /* Return value */

   /*
      The Choseong cho_var is determined by the
      21 modern + 50 ancient Jungseong, and whether
      or not the syllable contains a final consonant
      (Jongseong).
   */
   static int choseong_var [TOTAL_JUNG + 1] = {
          /*
             Modern Jungseong in positions 0..20.
          */
/* Location Variations  Unicode Range    Vowel #    Vowel Names  */
/* -------- ----------  --------------   -------    -----------  */
/* 0x2FB */ 0, 0, 0, // U+1161..U+1163-->[ 0.. 2]  A,   AE,  YA
/* 0x304 */ 0, 0, 0, // U+1164..U+1166-->[ 3.. 5]  YAE, EO,  E
/* 0x30D */ 0, 0,    // U+1167..U+1168-->[ 6.. 7]  YEO, YE
/* 0x313 */ 1,       // U+1169        -->[ 8]      O
/* 0x316 */ 2, 2, 2, // U+116A..U+116C-->[ 9..11]  WA,  WAE, WE
/* 0x31F */ 1, 4,    // U+116D..U+116E-->[12..13]  YO,  U
/* 0x325 */ 5, 5, 5, // U+116F..U+1171-->[14..16]  WEO, WE,  WI
/* 0x32E */ 4, 1,    // U+1172..U+1173-->[17..18]  YU,  EU
/* 0x334 */ 2,       // U+1174        -->[19]      YI
/* 0x337 */ 0,       // U+1175        -->[20]      I
          /*
             Ancient Jungseong in positions 21..70.
          */
/* Location  Variations  Unicode Range    Vowel #       Vowel Names  */
/* --------  ----------  --------------   -------       -----------  */
/* 0x33A: */ 2, 5, 2, // U+1176..U+1178-->[21..23]   A-O,    A-U,   YA-O
/* 0x343: */ 2, 2, 5, // U+1179..U+117B-->[24..26]  YA-YO,  EO-O,   EU-U
/* 0x34C: */ 2, 2, 5, // U+117C..U+117E-->[27..29]  EO-EU, YEO-O,  YEO-U
/* 0x355: */ 2, 5, 5, // U+117F..U+1181-->[30..32]   O-EO,   O-E,    O-YE,
/* 0x35E: */ 4, 4, 2, // U+1182..U+1184-->[33..35]   O-O,    O-U,   YO-YA,
/* 0x367: */ 2, 2, 5, // U+1185..U+1187-->[36..38]  YO-YAE, YO-YEO, YO-O,
/* 0x370: */ 2, 5, 5, // U+1188..U+118A-->[39..41]  YO-I,    U-A,    U-AE,
/* 0x379: */ 5, 5, 5, // U+118B..U+118D-->[42..44] U-EO-EU,  U-YE,   U-U,
/* 0x382: */ 5, 5, 5, // U+118E..U+1190-->[45..47]  YU-A,   YU-EO,  YU-E,
/* 0x38B: */ 5, 5, 2, // U+1191..U+1193-->[48..50]  YU-YEO, YU-YE,  YU-U,
/* 0x394: */ 5, 2, 2, // U+1194..U+1196-->[51..53]  YU-I,   EU-U,   EU-EU,
/* 0x39D: */ 2, 0, 0, // U+1197..U+1199-->[54..56]  YI-U,    I-A,    I-YA,
/* 0x3A6: */ 2, 5, 2, // U+119A..U+119C-->[57..59]   I-O,    I-U,    I-EU,
/* 0x3AF: */ 0, 1, 2, // U+119D..U+119F-->[60..62] I-ARAEA, ARAEA, ARAEA-EO,
/* 0x3B8: */ 1, 2, 1, // U+11A0..U+11A2-->[63..65] ARAEA-U, ARAEA-I,SSANGARAEA,
/* 0x3C1: */ 2, 5, 0, // U+11A3..U+11A5-->[66..68]   A-EU,  YA-U,  YEO-YA,
/* 0x3CA: */ 2, 2,    // U+11A6..U+11A7-->[69..70]   O-YA,   O-YAE,
#ifdef EXTENDED_HANGUL
/* 0x3D0: */ 2, 4, 5, // U+D7B0..U+D7B2-->[71..73]   O-YEO,  O-O-I, YO-A,
/* 0x3D9: */ 5, 2, 5, // U+D7B3..U+D7B5-->[74..76]  YO-AE,  YO-EO,   U-YEO,
/* 0x3E2: */ 5, 5, 4, // U+D7B6..U+D7B8-->[77..79]   U-I-I, YU-AE,  YU-O,
/* 0x3EB: */ 5, 2, 5, // U+D7B9..U+D7BB-->[80..82]  EU-A,   EU-EO,  EU-E,
/* 0x3F4: */ 4, 2, 3, // U+D7BC..U+D7BE-->[83..85]  EU-O,    I-YA-O, I-YAE,
/* 0x3FD: */ 3, 3, 2, // U+D7BF..U+D7C1-->[86..88]   I-YEO,  I-YE,   I-O-I,
/* 0x406: */ 2, 2, 0, // U+D7C2..U+D7C4-->[89..91]   I-YO,   I-YU,   I-I,
/* 0x40F: */ 2, 2,    // U+D7C5..U+D7C6-->[92..93] ARAEA-A, ARAEA-E,
/* 0x415: */ -1       // Mark end of list of vowels.
#else
/* 0x310: */ -1       // Mark end of list of vowels.
#endif
   };


   if (jungseong < 0 || jungseong >= TOTAL_JUNG) {
      cho_variation = -1;
   }
   else {
      cho_variation = choseong_var [jungseong];
      if (choseong >= 0 && jongseong >= 0 && cho_variation < 3)
         cho_variation += 3;
   }


   return cho_variation;
}

Here is the call graph for this function:

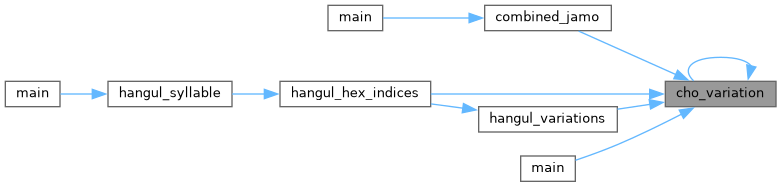

Here is the caller graph for this function:

combine_glyphs()

void combine_glyphs	(	unsigned *	glyph1,
		unsigned *	glyph2,
		unsigned *	combined_glyph
	)

Combine two glyphs into one glyph.

Parameters

[in]	glyph1	The first glyph to overlap.
[in]	glyph2	The second glyph to overlap.
[out]	combined_glyph	The returned combination glyph.

Definition at line 637 of file unihangul-support.c.

                                          {
   int i;

   for (i = 0; i < 16; i++)
      combined_glyph [i] = glyph1 [i] | glyph2 [i];

   return;
}

Here is the caller graph for this function:

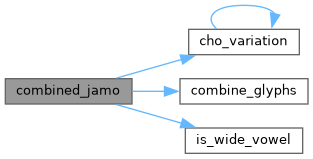

combined_jamo()

void combined_jamo	(	unsigned	glyph_table[MAX_GLYPHS][16],
		unsigned	cho,
		unsigned	jung,
		unsigned	jong,
		unsigned *	combined_glyph
	)

Convert Hangul Jamo choseong, jungseong, and jongseong into a glyph.

This function converts input Hangul choseong, jungseong, and jongseong Unicode code triplets into a Hangul syllable. Any of those with an out of range code point are assigned a blank glyph for combining.

This function performs the following steps:

 1) Determine the sequence number of choseong, jungseong,
    and jongseong, from 0 to the total number of choseong,
    jungseong, or jongseong, respectively, minus one.  The
    sequence for each is as follows:

    a) Choseong: Unicode code points of U+1100..U+115E
       and then U+A960..U+A97C.

    b) Jungseong: Unicode code points of U+1161..U+11A7
       and then U+D7B0..U+D7C6.

    c) Jongseong: Unicode code points of U+11A8..U+11FF
       and then U+D7CB..U+D7FB.

 2) From the choseong, jungseong, and jongseong sequence number,
    determine the variation of choseong and jungseong (there is
    only one jongseong variation, although it is shifted right
    by one column for some vowels with a pair of long vertical
    strokes on the right side).

 3) Convert the variation numbers for the three syllable
    components to index locations in the glyph array.

 4) Combine the glyph array glyphs into a syllable.

Parameters

[in]	glyph_table	The collection of all jamo glyphs.
[in]	cho	The choseong Unicode code point, 0 or 0x1100..0x115F.
[in]	jung	The jungseong Unicode code point, 0 or 0x1160..0x11A7.
[in]	jong	The jongseong Unicode code point, 0 or 0x11A8..0x11FF.
[out]	combined_glyph	The output glyph, 16 columns in each of 16 rows.

Definition at line 787 of file unihangul-support.c.

                                         {

   int i;  /* Loop variable. */
   int cho_num,   jung_num,   jong_num;
   int cho_group, jung_group, jong_group;
   int cho_index, jung_index, jong_index;

   unsigned tmp_glyph[16]; /* Hold shifted jongsung for wide vertical vowel. */

   int  cho_variation (int choseong, int jungseong, int jongseong);

   void combine_glyphs (unsigned *glyph1, unsigned *glyph2,
                        unsigned *combined_glyph);


   /* Choose a blank glyph for each syllalbe by default. */
   cho_index = jung_index = jong_index = 0x000;

   /*
      Convert Unicode code points to jamo sequence number
      of each letter, or -1 if letter is not in valid range.
   */
   if (cho >= 0x1100 && cho <= 0x115E)
      cho_num = cho - CHO_UNICODE_START;
   else if (cho >= CHO_EXTA_UNICODE_START &&
            cho < (CHO_EXTA_UNICODE_START + NCHO_EXTA))
      cho_num = cho - CHO_EXTA_UNICODE_START + NCHO_MODERN + NJONG_ANCIENT;
   else
      cho_num = -1;

   if (jung >= 0x1161 && jung <= 0x11A7)
      jung_num = jung - JUNG_UNICODE_START;
   else if (jung >= JUNG_EXTB_UNICODE_START &&
            jung < (JUNG_EXTB_UNICODE_START + NJUNG_EXTB))
      jung_num = jung - JUNG_EXTB_UNICODE_START + NJUNG_MODERN + NJUNG_ANCIENT;
   else
      jung_num = -1;

   if (jong >= 0x11A8 && jong <= 0x11FF)
      jong_num = jong - JONG_UNICODE_START;
   else if (jong >= JONG_EXTB_UNICODE_START &&
            jong < (JONG_EXTB_UNICODE_START + NJONG_EXTB))
      jong_num = jong - JONG_EXTB_UNICODE_START + NJONG_MODERN + NJONG_ANCIENT;
   else
      jong_num = -1;

   /*
      Choose initial consonant (choseong) variation based upon
      the vowel (jungseong) if both are specified.
   */
   if (cho_num < 0) {
      cho_index = cho_group = 0;  /* Use blank glyph for choseong. */
   }
   else {
      if (jung_num < 0 && jong_num < 0) {  /* Choseong is by itself. */
         cho_group = 0;
         if (cho_index < (NCHO_MODERN + NCHO_ANCIENT))
            cho_index = cho_num + JAMO_HEX;
         else  /* Choseong is in Hangul Jamo Extended-A range. */
            cho_index = cho_num - (NCHO_MODERN + NCHO_ANCIENT)
                                + JAMO_EXTA_HEX;
      }
      else {
         if (jung_num >= 0) {  /* Valid jungseong with choseong. */
            cho_group = cho_variation (cho_num, jung_num, jong_num);
         }
         else {  /* Invalid vowel; see if final consonant is valid. */
            /*
               If initial consonant and final consonant are specified,
               set cho_group to 4, which is the group tha would apply
               to a horizontal-only vowel such as Hangul "O", so the
               consonant appears full-width.
            */
            cho_group = 0;
            if (jong_num >= 0) {
               cho_group = 4;
            }
         }
         cho_index = CHO_HEX + CHO_VARIATIONS * cho_num +
                     cho_group;
      }  /* Choseong combined with jungseong and/or jongseong. */
   }  /* Valid choseong. */

   /*
      Choose vowel (jungseong) variation based upon the choseong
      and jungseong.
   */
   jung_index = jung_group = 0;  /* Use blank glyph for jungseong. */

   if (jung_num >= 0) {
      if (cho_num < 0 && jong_num < 0) {  /* Jungseong is by itself. */
         jung_group = 0;
         jung_index = jung_num + JUNG_UNICODE_START;
      }
      else {
         if (jong_num >= 0) {  /* If there is a final consonant. */
            if (jong_num == 3) /* Nieun; choose variation 3. */
               jung_group = 2;
            else
               jung_group = 1;
         }  /* Valid jongseong. */
         /* If valid choseong but no jongseong, choose jungseong variation 0. */
         else if (cho_num >= 0)
            jung_group = 0;
      }
      jung_index = JUNG_HEX + JUNG_VARIATIONS * jung_num + jung_group;
   }

   /*
      Choose final consonant (jongseong) based upon whether choseong
      and/or jungseong are present.
   */
   if (jong_num < 0) {
      jong_index = jong_group = 0;  /* Use blank glyph for jongseong. */
   }
   else {  /* Valid jongseong. */
      if (cho_num < 0 && jung_num < 0) {  /* Jongseong is by itself. */
         jong_group = 0;
         jong_index = jung_num + 0x4A8;
      }
      else {  /* There is only one jongseong variation if combined. */
         jong_group = 0;
         jong_index = JONG_HEX + JONG_VARIATIONS * jong_num +
                      jong_group;
      }
   }

   /*
      Now that we know the index locations for choseong, jungseong, and
      jongseong glyphs, combine them into one glyph.
   */
   combine_glyphs (glyph_table [cho_index], glyph_table [jung_index],
                   combined_glyph);

   if (jong_index > 0) {
      /*
         If the vowel has a vertical stroke that is one column
         away from the right border, shift this jongseung right
         by one column to line up with the rightmost vertical
         stroke in the vowel.
      */
      if (is_wide_vowel (jung_num)) {
         for (i = 0; i < 16; i++) {
            tmp_glyph [i] = glyph_table [jong_index] [i] >> 1;
         }
         combine_glyphs (combined_glyph, tmp_glyph,
                         combined_glyph);
      }
      else {
         combine_glyphs (combined_glyph, glyph_table [jong_index],
                         combined_glyph);
      }
   }

   return;
}

Here is the call graph for this function:

Here is the caller graph for this function:

glyph_overlap()

int glyph_overlap	(	unsigned *	glyph1,
		unsigned *	glyph2
	)

See if two glyphs overlap.

Parameters

[in]	glyph1	The first glyph, as a 16-row bitmap.
[in]	glyph2	The second glyph, as a 16-row bitmap.

Returns

0 if no overlaps between glyphs, 1 otherwise.

Definition at line 613 of file unihangul-support.c.

                                                   {
   int overlaps;  /* Return value; 0 if no overlaps, -1 if overlaps. */
   int i;

   /* Check for overlaps between the two glyphs. */

   i = 0;
   do {
      overlaps = (glyph1[i] & glyph2[i]) != 0;
      i++;
   }  while (i < 16 && overlaps == 0);

   return overlaps;
}

Here is the caller graph for this function:

hangul_compose()

unsigned hangul_compose	(	int	initial,
		int	medial,
		int	final
	)

Compose a Hangul syllable into a code point, or 0 if none exists.

This function takes three letters that can form a modern Hangul syllable and returns the corresponding Unicode Hangul Syllables code point in the range 0xAC00 to 0xD7A3.

If a three-letter combination includes one or more archaic letters, it will not map into the Hangul Syllables range. In that case, the returned code point will be 0 to indicate that no valid Hangul Syllables code point exists.

Parameters

[in]	initial	The first letter (choseong), 0 to 18.
[in]	medial	The second letter (jungseong), 0 to 20.
[in]	final	The third letter (jongseong), 0 to 26 or -1 if none.

Returns

The Unicode Hangul Syllables code point, 0xAC00 to 0xD7A3.

Definition at line 201 of file unihangul-support.c.

                                                    {
   unsigned codept;


   if (initial >= 0 && initial <= 18 &&
       medial  >= 0 && medial  <= 20 &&
       final   >= 0 && final   <= 26) {

      codept  = 0xAC00;
      codept += initial * 21 * 28;
      codept += medial  * 28;
      codept += final + 1;
   }
   else {
      codept = 0;
   }

   return codept;
}

hangul_decompose()

void hangul_decompose	(	unsigned	codept,
		int *	initial,
		int *	medial,
		int *	final
	)

Decompose a Hangul Syllables code point into three letters.

Decompose a Hangul Syllables code point (U+AC00..U+D7A3) into:

• Choseong 0-19
• Jungseong 0-20
• Jongseong 0-27 or -1 if no jongseong

All letter values are set to -1 if the letters do not form a syllable in the Hangul Syllables range. This function only handles modern Hangul, because that is all that is in the Hangul Syllables range.

Parameters

[in]	codept	The Unicode code point to decode, from 0xAC00 to 0xD7A3.
[out]	initial	The 1st letter (choseong) in the syllable.
[out]	initial	The 2nd letter (jungseong) in the syllable.
[out]	initial	The 3rd letter (jongseong) in the syllable.

Definition at line 167 of file unihangul-support.c.

                                                                          {

   if (codept < 0xAC00 || codept > 0xD7A3) {
      *initial = *medial = *final = -1;
   }
   else {
      codept  -= 0xAC00;
      *initial =  codept / (28  * 21);
      *medial  = (codept /  28) % 21;
      *final   =  codept %  28 - 1;
   }

   return;
}

Here is the caller graph for this function:

hangul_hex_indices()

void hangul_hex_indices	(	int	choseong,
		int	jungseong,
		int	jongseong,
		int *	cho_index,
		int *	jung_index,
		int *	jong_index
	)

Determine index values to the bitmaps for a syllable's components.

This function reads these input values for modern and ancient Hangul letters:

• Choseong number (0 to the number of modern and archaic choseong - 1.
• Jungseong number (0 to the number of modern and archaic jungseong - 1.
• Jongseong number (0 to the number of modern and archaic jongseong - 1, or -1 if none.

It then determines the variation of each letter given the combination with the other two letters (or just choseong and jungseong if the jongseong value is -1).

These variations are then converted into index locations within the glyph array that was read in from the hangul-base.hex file. Those index locations can then be used to form a composite syllable.

There is no restriction to only use the modern Hangul letters.

Parameters

[in]	choseong	The 1st letter in the syllable.
[in]	jungseong	The 2nd letter in the syllable.
[in]	jongseong	The 3rd letter in the syllable, or -1 if none.
[out]	cho_index	Index location to the 1st letter variation from the hangul-base.hex file.
[out]	jung_index	Index location to the 2nd letter variation from the hangul-base.hex file.
[out]	jong_index	Index location to the 3rd letter variation from the hangul-base.hex file.

Definition at line 249 of file unihangul-support.c.

                                                                     {

   int cho_variation, jung_variation, jong_variation;  /* Letter variations */

   void hangul_variations (int choseong, int jungseong, int jongseong,
           int *cho_variation, int *jung_variation, int *jong_variation);


   hangul_variations (choseong, jungseong, jongseong,
                      &cho_variation, &jung_variation, &jong_variation);

    *cho_index = CHO_HEX +  choseong * CHO_VARIATIONS +  cho_variation;
   *jung_index = JUNG_HEX      + jungseong * JUNG_VARIATIONS      + jung_variation;;
   *jong_index = jongseong < 0 ? 0x0000 :
                 JONG_HEX + jongseong * JONG_VARIATIONS + jong_variation;

   return;
}

Here is the call graph for this function:

Here is the caller graph for this function:

hangul_read_base16()

unsigned hangul_read_base16	(	FILE *	infp,
		unsigned	base[][16]
	)

Read hangul-base.hex file into a unsigned array.

Read a Hangul base .hex file with separate choseong, jungseong, and jongseong glyphs for syllable formation. The order is:

• Empty glyph in 0x0000 position.
• Initial consonants (choseong).
• Medial vowels and dipthongs (jungseong).
• Final consonants (jongseong).
• Individual letter forms in isolation, not for syllable formation.

The letters are arranged with all variations for one letter before continuing to the next letter. In the current encoding, there are 6 variations of choseong, 3 of jungseong, and 1 of jongseong per letter.

Parameters

[in]	Input	file pointer; can be stdin.
[out]	Array	of bit patterns, with 16 16-bit values per letter.

Returns

The maximum code point value read in the file.

Definition at line 116 of file unihangul-support.c.

                                                     {
   unsigned codept;
   unsigned max_codept;
   int      i, j;
   char     instring[MAXLINE];


   max_codept = 0;

   while (fgets (instring, MAXLINE, infp) != NULL) {
      sscanf (instring, "%X", &codept);
      codept -= PUA_START;
      /* If code point is within range, add it */
      if (codept < MAX_GLYPHS) {
         /* Find the start of the glyph bitmap. */
         for (i = 1; instring[i] != '\0' && instring[i] != ':'; i++);
         if (instring[i] == ':') {
            i++;  /* Skip over ':' to get to start of bitmap. */
            for (j = 0; j < 16; j++) {
               sscanf (&instring[i], "%4X", &base[codept][j]);
               i += 4;
            }
            if (codept > max_codept) max_codept = codept;
         }
      }
   }

   return max_codept;
}

Here is the caller graph for this function:

hangul_read_base8()

unsigned hangul_read_base8	(	FILE *	infp,
		unsigned char	base[][32]
	)

Read hangul-base.hex file into a unsigned char array.

Read a Hangul base .hex file with separate choseong, jungseong, and jongseong glyphs for syllable formation. The order is:

• Empty glyph in 0x0000 position.
• Initial consonants (choseong).
• Medial vowels and dipthongs (jungseong).
• Final consonants (jongseong).
• Individual letter forms in isolation, not for syllable formation.

The letters are arranged with all variations for one letter before continuing to the next letter. In the current encoding, there are 6 variations of choseong, 3 of jungseong, and 1 of jongseong per letter.

Parameters

[in]	Input	file pointer; can be stdin.
[out]	Array	of bit patterns, with 32 8-bit values per letter.

Returns

The maximum code point value read in the file.

Definition at line 63 of file unihangul-support.c.

                                                         {
   unsigned codept;
   unsigned max_codept;
   int      i, j;
   char     instring[MAXLINE];


   max_codept = 0;

   while (fgets (instring, MAXLINE, infp) != NULL) {
      sscanf (instring, "%X", &codept);
      codept -= PUA_START;
      /* If code point is within range, add it */
      if (codept < MAX_GLYPHS) {
         /* Find the start of the glyph bitmap. */
         for (i = 1; instring[i] != '\0' && instring[i] != ':'; i++);
         if (instring[i] == ':') {
            i++;  /* Skip over ':' to get to start of bitmap. */
            for (j = 0; j < 32; j++) {
               sscanf (&instring[i], "%2hhX", &base[codept][j]);
               i += 2;
            }
            if (codept > max_codept) max_codept = codept;
         }
      }
   }

   return max_codept;
}

Here is the caller graph for this function:

hangul_syllable()

void hangul_syllable	(	int	choseong,
		int	jungseong,
		int	jongseong,
		unsigned char	hangul_base[][32],
		unsigned char *	syllable
	)

Given letters in a Hangul syllable, return a glyph.

This function returns a glyph bitmap comprising up to three Hangul letters that form a syllable. It reads the three component letters (choseong, jungseong, and jungseong), then calls a function that determines the appropriate variation of each letter, returning the letter bitmap locations in the glyph array. Then these letter bitmaps are combined with a logical OR operation to produce a final bitmap, which forms a 16 row by 16 column bitmap glyph.

Parameters

[in]	choseong	The 1st letter in the composite glyph.
[in]	jungseong	The 2nd letter in the composite glyph.
[in]	jongseong	The 3rd letter in the composite glyph.
[in]	hangul_base	The glyphs read from the "hangul_base.hex" file.

Returns

syllable The composite syllable, as a 16 by 16 pixel bitmap.

Definition at line 583 of file unihangul-support.c.

                                                                           {

   int      i;  /* loop variable */
   int      cho_hex, jung_hex, jong_hex;
   unsigned char glyph_byte;


   hangul_hex_indices (choseong, jungseong, jongseong,
                      &cho_hex, &jung_hex, &jong_hex);

   for (i = 0; i < 32; i++) {
      glyph_byte  = hangul_base [cho_hex][i];
      glyph_byte |= hangul_base [jung_hex][i];
      if (jong_hex >= 0) glyph_byte |= hangul_base [jong_hex][i];
      syllable[i] = glyph_byte;
   }

   return;
}

Here is the call graph for this function:

Here is the caller graph for this function:

hangul_variations()

void hangul_variations	(	int	choseong,
		int	jungseong,
		int	jongseong,
		int *	cho_var,
		int *	jung_var,
		int *	jong_var
	)

Determine the variations of each letter in a Hangul syllable.

Given the three letters that will form a syllable, return the variation of each letter used to form the composite glyph.

This function can determine variations for both modern and archaic Hangul letters; it is not limited to only the letters combinations that comprise the Unicode Hangul Syllables range.

This function reads these input values for modern and ancient Hangul letters:

• Choseong number (0 to the number of modern and archaic choseong - 1.
• Jungseong number (0 to the number of modern and archaic jungseong - 1.
• Jongseong number (0 to the number of modern and archaic jongseong - 1, or -1 if none.

It then determines the variation of each letter given the combination with the other two letters (or just choseong and jungseong if the jongseong value is -1).

Parameters

[in]	choseong	The 1st letter in the syllable.
[in]	jungseong	The 2nd letter in the syllable.
[in]	jongseong	The 3rd letter in the syllable, or -1 if none.
[out]	cho_var	Variation of the 1st letter from the hangul-base.hex file.
[out]	jung_var	Variation of the 2nd letter from the hangul-base.hex file.
[out]	jong_var	Variation of the 3rd letter from the hangul-base.hex file.

Definition at line 298 of file unihangul-support.c.

                                                               {

   int  cho_variation (int choseong, int jungseong, int jongseong);
   int jung_variation (int choseong, int jungseong, int jongseong);
   int jong_variation (int choseong, int jungseong, int jongseong);

   /*
      Find the variation for each letter component.
   */
    *cho_var =  cho_variation (choseong, jungseong, jongseong);
   *jung_var = jung_variation (choseong, jungseong, jongseong);
   *jong_var = jong_variation (choseong, jungseong, jongseong);


   return;
}

Here is the call graph for this function:

Here is the caller graph for this function:

is_wide_vowel()

int is_wide_vowel

(

int

vowel

)

Whether vowel has rightmost vertical stroke to the right.

Parameters

[in]

vowel

Vowel number, from 0 to TOTAL_JUNG - 1.

Returns

1 if this vowel's vertical stroke is wide on the right side; else 0.

Definition at line 434 of file unihangul-support.c.

                          {
   int retval;  /* Return value. */

   static int wide_vowel [TOTAL_JUNG + 1] = {
          /*
             Modern Jungseong in positions 0..20.
          */
/* Location Variations  Unicode Range    Vowel #    Vowel Names  */
/* -------- ----------  --------------   -------    -----------  */
/* 0x2FB */ 0, 1, 0, // U+1161..U+1163-->[ 0.. 2]  A,   AE,  YA
/* 0x304 */ 1, 0, 1, // U+1164..U+1166-->[ 3.. 5]  YAE, EO,  E
/* 0x30D */ 0, 1,    // U+1167..U+1168-->[ 6.. 7]  YEO, YE
/* 0x313 */ 0,       // U+1169        -->[ 8]      O
/* 0x316 */ 0, 1, 0, // U+116A..U+116C-->[ 9..11]  WA,  WAE, WE
/* 0x31F */ 0, 0,    // U+116D..U+116E-->[12..13]  YO,  U
/* 0x325 */ 0, 1, 0, // U+116F..U+1171-->[14..16]  WEO, WE,  WI
/* 0x32E */ 0, 0,    // U+1172..U+1173-->[17..18]  YU,  EU
/* 0x334 */ 0,       // U+1174        -->[19]      YI
/* 0x337 */ 0,       // U+1175        -->[20]      I
          /*
             Ancient Jungseong in positions 21..70.
          */
/* Location  Variations  Unicode Range    Vowel #       Vowel Names  */
/* --------  ----------  --------------   -------       -----------  */
/* 0x33A: */ 0, 0, 0, // U+1176..U+1178-->[21..23]   A-O,    A-U,   YA-O
/* 0x343: */ 0, 0, 0, // U+1179..U+117B-->[24..26]  YA-YO,  EO-O,   EU-U
/* 0x34C: */ 0, 0, 0, // U+117C..U+117E-->[27..29]  EO-EU, YEO-O,  YEO-U
/* 0x355: */ 0, 1, 1, // U+117F..U+1181-->[30..32]   O-EO,   O-E,    O-YE,
/* 0x35E: */ 0, 0, 0, // U+1182..U+1184-->[33..35]   O-O,    O-U,   YO-YA,
/* 0x367: */ 1, 0, 0, // U+1185..U+1187-->[36..38]  YO-YAE, YO-YEO, YO-O,
/* 0x370: */ 0, 0, 1, // U+1188..U+118A-->[39..41]  YO-I,    U-A,    U-AE,
/* 0x379: */ 0, 1, 0, // U+118B..U+118D-->[42..44] U-EO-EU,  U-YE,   U-U,
/* 0x382: */ 0, 0, 1, // U+118E..U+1190-->[45..47]  YU-A,   YU-EO,  YU-E,
/* 0x38B: */ 0, 1, 0, // U+1191..U+1193-->[48..50]  YU-YEO, YU-YE,  YU-U,
/* 0x394: */ 0, 0, 0, // U+1194..U+1196-->[51..53]  YU-I,   EU-U,   EU-EU,
/* 0x39D: */ 0, 0, 0, // U+1197..U+1199-->[54..56]  YI-U,    I-A,    I-YA,
/* 0x3A6: */ 0, 0, 0, // U+119A..U+119C-->[57..59]   I-O,    I-U,    I-EU,
/* 0x3AF: */ 0, 0, 0, // U+119D..U+119F-->[60..62] I-ARAEA, ARAEA, ARAEA-EO,
/* 0x3B8: */ 0, 0, 0, // U+11A0..U+11A2-->[63..65] ARAEA-U, ARAEA-I,SSANGARAEA,
/* 0x3C1: */ 0, 0, 0, // U+11A3..U+11A5-->[66..68]   A-EU,  YA-U,  YEO-YA,
/* 0x3CA: */ 0, 1,    // U+11A6..U+11A7-->[69..70]   O-YA,   O-YAE
#ifdef EXTENDED_HANGUL
/* 0x3D0: */ 0, 0, 0, // U+D7B0..U+D7B2-->[71..73]   O-YEO,  O-O-I, YO-A,
/* 0x3D9: */ 1, 0, 0, // U+D7B3..U+D7B5-->[74..76]  YO-AE,  YO-EO,   U-YEO,
/* 0x3E2: */ 1, 1, 0, // U+D7B6..U+D7B8-->[77..79]   U-I-I, YU-AE,  YU-O,
/* 0x3EB: */ 0, 0, 1, // U+D7B9..U+D7BB-->[80..82]  EU-A,   EU-EO,  EU-E,
/* 0x3F4: */ 0, 0, 1, // U+D7BC..U+D7BE-->[83..85]  EU-O,    I-YA-O, I-YAE,
/* 0x3FD: */ 0, 1, 0, // U+D7BF..U+D7C1-->[86..88]   I-YEO,  I-YE,   I-O-I,
/* 0x406: */ 0, 0, 1, // U+D7C2..U+D7C4-->[89..91]   I-YO,   I-YU,   I-I,
/* 0x40F: */ 0, 1,    // U+D7C5..U+D7C6-->[92..93] ARAEA-A, ARAEA-E,
/* 0x415: */ -1       // Mark end of list of vowels.
#else
/* 0x310: */ -1       // Mark end of list of vowels.
#endif
   };


   if (vowel >= 0 && vowel < TOTAL_JUNG) {
      retval = wide_vowel [vowel];
   }
   else {
      retval = 0;
   }


   return retval;
}

Here is the caller graph for this function:

jong_variation()

int jong_variation ( int  choseong, int  jungseong, int  jongseong  )

inline

Return the Johab 6/3/1 jongseong variation.

There is only one jongseong variation, so this function always returns 0. It is a placeholder function for possible future adaptation to other johab encodings.

Parameters

[in]	choseong	The 1st letter in the syllable.
[in]	jungseong	The 2nd letter in the syllable.
[in]	jongseong	The 3rd letter in the syllable.

Returns

The jongseong variation, always 0.

Definition at line 558 of file unihangul-support.c.

                                                            {

   return 0;  /* There is only one Jongseong variation. */
}

Here is the caller graph for this function:

jung_variation()

int jung_variation ( int  choseong, int  jungseong, int  jongseong  )

inline

Return the Johab 6/3/1 jungseong variation.

This function takes the two or three (if jongseong is included) letters that comprise a syllable and determine the variation of the vowel (jungseong).

Each jungseong has 3 variations:

Variation Occurrence

---

0 Jungseong with only chungseong (no jungseong). 1 Jungseong with chungseong and jungseong (except nieun). 2 Jungseong with chungseong and jungseong nieun.

Parameters

[in]	choseong	The 1st letter in the syllable.
[in]	jungseong	The 2nd letter in the syllable.
[in]	jongseong	The 3rd letter in the syllable.

Returns

The jungseong variation, 0 to 2.

Definition at line 524 of file unihangul-support.c.

                                                            {
   int jung_variation;  /* Return value */

   if (jungseong < 0) {
      jung_variation = -1;
   }
   else {
      jung_variation = 0;
      if (jongseong >= 0) {
         if (jongseong == 3)
            jung_variation = 2;  /* Vowel for final Nieun. */
         else
            jung_variation = 1;
      }
   }


   return jung_variation;
}

Here is the call graph for this function:

Here is the caller graph for this function:

one_jamo()

void one_jamo	(	unsigned	glyph_table[MAX_GLYPHS][16],
		unsigned	jamo,
		unsigned *	jamo_glyph
	)

Convert Hangul Jamo choseong, jungseong, and jongseong into a glyph.

Parameters

[in]	glyph_table	The collection of all jamo glyphs.
[in]	jamo	The Unicode code point, 0 or 0x1100..0x115F.
[out]	jamo_glyph	The output glyph, 16 columns in each of 16 rows.

Definition at line 717 of file unihangul-support.c.

                                               {

   int i;  /* Loop variable */
   int glyph_index;  /* Location of glyph in "hangul-base.hex" array */


   /* If jamo is invalid range, use blank glyph, */
   if (jamo >= 0x1100 && jamo <= 0x11FF) {
      glyph_index = jamo - 0x1100 + JAMO_HEX;
   }
   else if (jamo >= 0xA960 && jamo <= 0xA97F) {
      glyph_index = jamo - 0xA960 + JAMO_EXTA_HEX;
   }
   else if (jamo >= 0xD7B0 && jamo <= 0xD7FF) {
      glyph_index = jamo - 0x1100 + JAMO_EXTB_HEX;
   }
   else {
      glyph_index = 0;
   }

   for (i = 0; i < 16; i++) {
      jamo_glyph [i] = glyph_table [glyph_index] [i];
   }

   return;
}

print_glyph_hex()

void print_glyph_hex	(	FILE *	fp,
		unsigned	codept,
		unsigned *	this_glyph
	)

Print one glyph in Unifont hexdraw hexadecimal string style.

Parameters

[in]	fp	The file pointer for output.
[in]	codept	The Unicode code point to print with the glyph.
[in]	this_glyph	The 16-row by 16-column glyph to print.

Definition at line 692 of file unihangul-support.c.

                                                                  {

   int i;


   fprintf (fp, "%04X:", codept);

   /* for each this_glyph row */
   for (i = 0; i < 16; i++) {
      fprintf (fp, "%04X", this_glyph[i]);
   }
   fputc ('\n', fp);

   return;
}

Here is the caller graph for this function:

print_glyph_txt()

void print_glyph_txt	(	FILE *	fp,
		unsigned	codept,
		unsigned *	this_glyph
	)

Print one glyph in Unifont hexdraw plain text style.

Parameters

[in]	fp	The file pointer for output.
[in]	codept	The Unicode code point to print with the glyph.
[in]	this_glyph	The 16-row by 16-column glyph to print.

Definition at line 656 of file unihangul-support.c.

                                                                  {
   int i;
   unsigned mask;


   fprintf (fp, "%04X:", codept);

   /* for each this_glyph row */
   for (i = 0; i < 16; i++) {
      mask = 0x8000;
      fputc ('\t', fp);
      while (mask != 0x0000) {
         if (mask & this_glyph [i]) {
            fputc ('#', fp);
         }
         else {
            fputc ('-', fp);
         }
         mask >>= 1;  /* shift to next bit in this_glyph row */
      }
      fputc ('\n', fp);
   }
   fputc ('\n', fp);

   return;
}

Here is the caller graph for this function:
