Define constants and function prototypes for using Hangul glyphs. More...

#include <stdlib.h>

Include dependency graph for hangul.h:

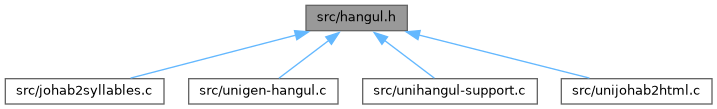

This graph shows which files directly or indirectly include this file:

Macros
#define	MAXLINE 256
	Length of maximum file input line.

#define	EXTENDED_HANGUL /* Use rare Hangul code points beyond U+1100 */

#define	PUA_START 0xE000

#define	PUA_END 0xE8FF

#define	MAX_GLYPHS (PUA_END - PUA_START + 1) /* Maximum .hex file glyphs */

#define	CHO_UNICODE_START 0x1100
	Modern Hangul choseong start.

#define	CHO_UNICODE_END 0x115E
	Hangul Jamo choseong end.

#define	CHO_EXTA_UNICODE_START 0xA960
	Hangul Extended-A choseong start.

#define	CHO_EXTA_UNICODE_END 0xA97C
	Hangul Extended-A choseong end.

#define	JUNG_UNICODE_START 0x1161
	Modern Hangul jungseong start.

#define	JUNG_UNICODE_END 0x11A7
	Modern Hangul jungseong end.

#define	JUNG_EXTB_UNICODE_START 0xD7B0
	Hangul Extended-B jungseong start.

#define	JUNG_EXTB_UNICODE_END 0xD7C6
	Hangul Extended-B jungseong end.

#define	JONG_UNICODE_START 0x11A8
	Modern Hangul jongseong start.

#define	JONG_UNICODE_END 0x11FF
	Modern Hangul jongseong end.

#define	JONG_EXTB_UNICODE_START 0xD7CB
	Hangul Extended-B jongseong start.

#define	JONG_EXTB_UNICODE_END 0xD7FB
	Hangul Extended-B jongseong end.

#define	NCHO_MODERN 19
	19 modern Hangul Jamo choseong

#define	NCHO_ANCIENT 76
	ancient Hangul Jamo choseong

#define	NCHO_EXTA 29
	Hangul Extended-A choseong.

#define	NCHO_EXTA_RSRVD 3
	Reserved at end of Extended-A choseong.

#define	NJUNG_MODERN 21
	21 modern Hangul Jamo jungseong

#define	NJUNG_ANCIENT 50
	ancient Hangul Jamo jungseong

#define	NJUNG_EXTB 23
	Hangul Extended-B jungseong.

#define	NJUNG_EXTB_RSRVD 4
	Reserved at end of Extended-B junseong.

#define	NJONG_MODERN 27
	28 modern Hangul Jamo jongseong

#define	NJONG_ANCIENT 61
	ancient Hangul Jamo jongseong

#define	NJONG_EXTB 49
	Hangul Extended-B jongseong.

#define	NJONG_EXTB_RSRVD 4
	Reserved at end of Extended-B jonseong.

#define	CHO_VARIATIONS 6
	6 choseong variations

#define	JUNG_VARIATIONS 3
	3 jungseong variations

#define	JONG_VARIATIONS 1
	1 jongseong variation

#define	CHO_HEX 0x0001
	Location of first choseong (location 0x0000 is a blank glyph)

#define	CHO_ANCIENT_HEX (CHO_HEX + CHO_VARIATIONS * NCHO_MODERN)
	Location of first ancient choseong.

#define	CHO_EXTA_HEX (CHO_ANCIENT_HEX + CHO_VARIATIONS * NCHO_ANCIENT)
	U+A960 Extended-A choseong.

#define	CHO_LAST_HEX (CHO_EXTA_HEX + CHO_VARIATIONS * (NCHO_EXTA + NCHO_EXTA_RSRVD) - 1)
	U+A97F Extended-A last location in .hex file, including reserved Unicode code points at end.

#define	JUNG_HEX (CHO_LAST_HEX + 1)
	Location of first jungseong (will be 0x2FB)

#define	JUNG_ANCIENT_HEX (JUNG_HEX + JUNG_VARIATIONS * NJUNG_MODERN)
	Location of first ancient jungseong.

#define	JUNG_EXTB_HEX (JUNG_ANCIENT_HEX + JUNG_VARIATIONS * NJUNG_ANCIENT)
	U+D7B0 Extended-B jungseong.

#define	JUNG_LAST_HEX (JUNG_EXTB_HEX + JUNG_VARIATIONS * (NJUNG_EXTB + NJUNG_EXTB_RSRVD) - 1)
	U+D7CA Extended-B last location in .hex file, including reserved Unicode code points at end.

#define	JONG_HEX (JUNG_LAST_HEX + 1)
	Location of first jongseong (will be 0x421)

#define	JONG_ANCIENT_HEX (JONG_HEX + JONG_VARIATIONS * NJONG_MODERN)
	Location of first ancient jongseong.

#define	JONG_EXTB_HEX (JONG_ANCIENT_HEX + JONG_VARIATIONS * NJONG_ANCIENT)
	U+D7CB Extended-B jongseong.

#define	JONG_LAST_HEX (JONG_EXTB_HEX + JONG_VARIATIONS * (NJONG_EXTB + NJONG_EXTB_RSRVD) - 1)
	U+D7FF Extended-B last location in .hex file, including reserved Unicode code points at end.

#define	JAMO_HEX 0x0500
	Start of U+1100..U+11FF glyphs.

#define	JAMO_END 0x05FF
	End of U+1100..U+11FF glyphs.

#define	JAMO_EXTA_HEX 0x0600
	Start of U+A960..U+A97F glyphs.

#define	JAMO_EXTA_END 0x061F
	End of U+A960..U+A97F glyphs.

#define	JAMO_EXTB_HEX 0x0620
	Start of U+D7B0..U+D7FF glyphs.

#define	JAMO_EXTB_END 0x066F
	End of U+D7B0..U+D7FF glyphs.

#define	TOTAL_CHO (NCHO_MODERN + NCHO_ANCIENT + NCHO_EXTA )

#define	TOTAL_JUNG (NJUNG_MODERN + NJUNG_ANCIENT + NJUNG_EXTB)

#define	TOTAL_JONG (NJONG_MODERN + NJONG_ANCIENT + NJONG_EXTB)

Functions
unsigned	hangul_read_base8 (FILE *infp, unsigned char base[][32])
	Read hangul-base.hex file into a unsigned char array.

unsigned	hangul_read_base16 (FILE *infp, unsigned base[][16])
	Read hangul-base.hex file into a unsigned array.

void	hangul_decompose (unsigned codept, int initial, int medial, int *final)
	Decompose a Hangul Syllables code point into three letters.

unsigned	hangul_compose (int initial, int medial, int final)
	Compose a Hangul syllable into a code point, or 0 if none exists.

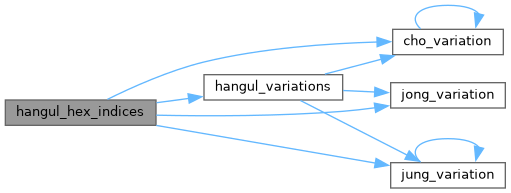

void	hangul_hex_indices (int choseong, int jungseong, int jongseong, int cho_index, int jung_index, int *jong_index)
	Determine index values to the bitmaps for a syllable's components.

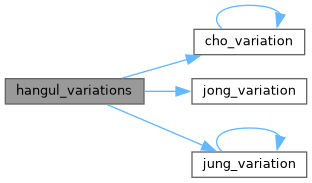

void	hangul_variations (int choseong, int jungseong, int jongseong, int cho_var, int jung_var, int *jong_var)
	Determine the variations of each letter in a Hangul syllable.

int	is_wide_vowel (int vowel)
	Whether vowel has rightmost vertical stroke to the right.

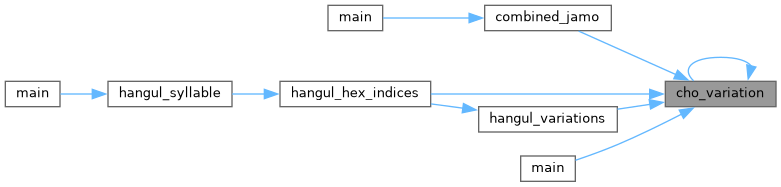

int	cho_variation (int choseong, int jungseong, int jongseong)
	Return the Johab 6/3/1 choseong variation for a syllable.

int	jung_variation (int choseong, int jungseong, int jongseong)
	Return the Johab 6/3/1 jungseong variation.

int	jong_variation (int choseong, int jungseong, int jongseong)
	Return the Johab 6/3/1 jongseong variation.

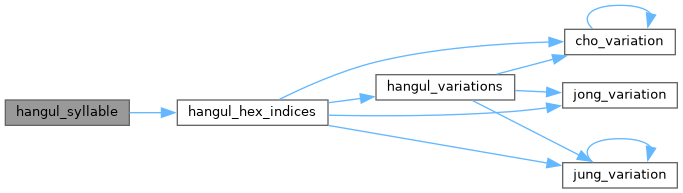

void	hangul_syllable (int choseong, int jungseong, int jongseong, unsigned char hangul_base[][32], unsigned char *syllable)
	Given letters in a Hangul syllable, return a glyph.

int	glyph_overlap (unsigned glyph1, unsigned glyph2)
	See if two glyphs overlap.

void	combine_glyphs (unsigned glyph1, unsigned glyph2, unsigned *combined_glyph)
	Combine two glyphs into one glyph.

void	one_jamo (unsigned glyph_table[MAX_GLYPHS][16], unsigned jamo, unsigned *jamo_glyph)
	Convert Hangul Jamo choseong, jungseong, and jongseong into a glyph.

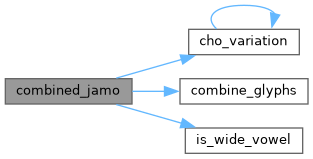

void	combined_jamo (unsigned glyph_table[MAX_GLYPHS][16], unsigned cho, unsigned jung, unsigned jong, unsigned *combined_glyph)
	Convert Hangul Jamo choseong, jungseong, and jongseong into a glyph.

void	print_glyph_txt (FILE fp, unsigned codept, unsigned this_glyph)
	Print one glyph in Unifont hexdraw plain text style.

void	print_glyph_hex (FILE fp, unsigned codept, unsigned this_glyph)
	Print one glyph in Unifont hexdraw hexadecimal string style.

Detailed Description

Define constants and function prototypes for using Hangul glyphs.

Author: Paul Hardy

Copyright: Copyright © 2023 Paul Hardy

Definition in file hangul.h.

Macro Definition Documentation

◆ CHO_ANCIENT_HEX

#define CHO_ANCIENT_HEX (CHO_HEX + CHO_VARIATIONS * NCHO_MODERN)

Location of first ancient choseong.

Definition at line 99 of file hangul.h.

◆ CHO_EXTA_HEX

#define CHO_EXTA_HEX (CHO_ANCIENT_HEX + CHO_VARIATIONS * NCHO_ANCIENT)

U+A960 Extended-A choseong.

Definition at line 102 of file hangul.h.

◆ CHO_EXTA_UNICODE_END

#define CHO_EXTA_UNICODE_END 0xA97C

Hangul Extended-A choseong end.

Definition at line 53 of file hangul.h.

◆ CHO_EXTA_UNICODE_START

#define CHO_EXTA_UNICODE_START 0xA960

Hangul Extended-A choseong start.

Definition at line 52 of file hangul.h.

◆ CHO_HEX

#define CHO_HEX 0x0001

Location of first choseong (location 0x0000 is a blank glyph)

Definition at line 96 of file hangul.h.

◆ CHO_LAST_HEX

#define CHO_LAST_HEX (CHO_EXTA_HEX + CHO_VARIATIONS * (NCHO_EXTA + NCHO_EXTA_RSRVD) - 1)

U+A97F Extended-A last location in .hex file, including reserved Unicode code points at end.

Definition at line 105 of file hangul.h.

◆ CHO_UNICODE_END

#define CHO_UNICODE_END 0x115E

Hangul Jamo choseong end.

Definition at line 51 of file hangul.h.

◆ CHO_UNICODE_START

#define CHO_UNICODE_START 0x1100

Modern Hangul choseong start.

Definition at line 50 of file hangul.h.

◆ CHO_VARIATIONS

#define CHO_VARIATIONS 6

6 choseong variations

Definition at line 88 of file hangul.h.

◆ EXTENDED_HANGUL

#define EXTENDED_HANGUL /* Use rare Hangul code points beyond U+1100 */

Definition at line 35 of file hangul.h.

◆ JAMO_END

#define JAMO_END 0x05FF

End of U+1100..U+11FF glyphs.

Definition at line 133 of file hangul.h.

◆ JAMO_EXTA_END

#define JAMO_EXTA_END 0x061F

End of U+A960..U+A97F glyphs.

Definition at line 137 of file hangul.h.

◆ JAMO_EXTA_HEX

#define JAMO_EXTA_HEX 0x0600

Start of U+A960..U+A97F glyphs.

Definition at line 136 of file hangul.h.

◆ JAMO_EXTB_END

#define JAMO_EXTB_END 0x066F

End of U+D7B0..U+D7FF glyphs.

Definition at line 141 of file hangul.h.

◆ JAMO_EXTB_HEX

#define JAMO_EXTB_HEX 0x0620

Start of U+D7B0..U+D7FF glyphs.

Definition at line 140 of file hangul.h.

◆ JAMO_HEX

#define JAMO_HEX 0x0500

Start of U+1100..U+11FF glyphs.

Definition at line 132 of file hangul.h.

◆ JONG_ANCIENT_HEX

#define JONG_ANCIENT_HEX (JONG_HEX + JONG_VARIATIONS * NJONG_MODERN)

Location of first ancient jongseong.

Definition at line 123 of file hangul.h.

◆ JONG_EXTB_HEX

#define JONG_EXTB_HEX (JONG_ANCIENT_HEX + JONG_VARIATIONS * NJONG_ANCIENT)

U+D7CB Extended-B jongseong.

Definition at line 126 of file hangul.h.

◆ JONG_EXTB_UNICODE_END

#define JONG_EXTB_UNICODE_END 0xD7FB

Hangul Extended-B jongseong end.

Definition at line 63 of file hangul.h.

◆ JONG_EXTB_UNICODE_START

#define JONG_EXTB_UNICODE_START 0xD7CB

Hangul Extended-B jongseong start.

Definition at line 62 of file hangul.h.

◆ JONG_HEX

#define JONG_HEX (JUNG_LAST_HEX + 1)

Location of first jongseong (will be 0x421)

Definition at line 120 of file hangul.h.

◆ JONG_LAST_HEX

#define JONG_LAST_HEX (JONG_EXTB_HEX + JONG_VARIATIONS * (NJONG_EXTB + NJONG_EXTB_RSRVD) - 1)

U+D7FF Extended-B last location in .hex file, including reserved Unicode code points at end.

Definition at line 129 of file hangul.h.

◆ JONG_UNICODE_END

#define JONG_UNICODE_END 0x11FF

Modern Hangul jongseong end.

Definition at line 61 of file hangul.h.

◆ JONG_UNICODE_START

#define JONG_UNICODE_START 0x11A8

Modern Hangul jongseong start.

Definition at line 60 of file hangul.h.

◆ JONG_VARIATIONS

#define JONG_VARIATIONS 1

1 jongseong variation

Definition at line 90 of file hangul.h.

◆ JUNG_ANCIENT_HEX

#define JUNG_ANCIENT_HEX (JUNG_HEX + JUNG_VARIATIONS * NJUNG_MODERN)

Location of first ancient jungseong.

Definition at line 111 of file hangul.h.

◆ JUNG_EXTB_HEX

#define JUNG_EXTB_HEX (JUNG_ANCIENT_HEX + JUNG_VARIATIONS * NJUNG_ANCIENT)

U+D7B0 Extended-B jungseong.

Definition at line 114 of file hangul.h.

◆ JUNG_EXTB_UNICODE_END

#define JUNG_EXTB_UNICODE_END 0xD7C6

Hangul Extended-B jungseong end.

Definition at line 58 of file hangul.h.

◆ JUNG_EXTB_UNICODE_START

#define JUNG_EXTB_UNICODE_START 0xD7B0

Hangul Extended-B jungseong start.

Definition at line 57 of file hangul.h.

◆ JUNG_HEX

#define JUNG_HEX (CHO_LAST_HEX + 1)

Location of first jungseong (will be 0x2FB)

Definition at line 108 of file hangul.h.

◆ JUNG_LAST_HEX

#define JUNG_LAST_HEX (JUNG_EXTB_HEX + JUNG_VARIATIONS * (NJUNG_EXTB + NJUNG_EXTB_RSRVD) - 1)

U+D7CA Extended-B last location in .hex file, including reserved Unicode code points at end.

Definition at line 117 of file hangul.h.

◆ JUNG_UNICODE_END

#define JUNG_UNICODE_END 0x11A7

Modern Hangul jungseong end.

Definition at line 56 of file hangul.h.

◆ JUNG_UNICODE_START

#define JUNG_UNICODE_START 0x1161

Modern Hangul jungseong start.

Definition at line 55 of file hangul.h.

◆ JUNG_VARIATIONS

#define JUNG_VARIATIONS 3

3 jungseong variations

Definition at line 89 of file hangul.h.

◆ MAX_GLYPHS

#define MAX_GLYPHS (PUA_END - PUA_START + 1) /* Maximum .hex file glyphs */

Definition at line 40 of file hangul.h.

◆ MAXLINE

#define MAXLINE 256

Length of maximum file input line.

Definition at line 33 of file hangul.h.

◆ NCHO_ANCIENT

#define NCHO_ANCIENT 76

ancient Hangul Jamo choseong

Definition at line 70 of file hangul.h.

◆ NCHO_EXTA

#define NCHO_EXTA 29

Hangul Extended-A choseong.

Definition at line 71 of file hangul.h.

◆ NCHO_EXTA_RSRVD

#define NCHO_EXTA_RSRVD 3

Reserved at end of Extended-A choseong.

Definition at line 72 of file hangul.h.

◆ NCHO_MODERN

#define NCHO_MODERN 19

19 modern Hangul Jamo choseong

Definition at line 69 of file hangul.h.

◆ NJONG_ANCIENT

#define NJONG_ANCIENT 61

ancient Hangul Jamo jongseong

Definition at line 80 of file hangul.h.

◆ NJONG_EXTB

#define NJONG_EXTB 49

Hangul Extended-B jongseong.

Definition at line 81 of file hangul.h.

◆ NJONG_EXTB_RSRVD

#define NJONG_EXTB_RSRVD 4

Reserved at end of Extended-B jonseong.

Definition at line 82 of file hangul.h.

◆ NJONG_MODERN

#define NJONG_MODERN 27

28 modern Hangul Jamo jongseong

Definition at line 79 of file hangul.h.

◆ NJUNG_ANCIENT

#define NJUNG_ANCIENT 50

ancient Hangul Jamo jungseong

Definition at line 75 of file hangul.h.

◆ NJUNG_EXTB

#define NJUNG_EXTB 23

Hangul Extended-B jungseong.

Definition at line 76 of file hangul.h.

◆ NJUNG_EXTB_RSRVD

#define NJUNG_EXTB_RSRVD 4

Reserved at end of Extended-B junseong.

Definition at line 77 of file hangul.h.

◆ NJUNG_MODERN

#define NJUNG_MODERN 21

21 modern Hangul Jamo jungseong

Definition at line 74 of file hangul.h.

◆ PUA_END

#define PUA_END 0xE8FF

Definition at line 39 of file hangul.h.

◆ PUA_START

#define PUA_START 0xE000

Definition at line 38 of file hangul.h.

◆ TOTAL_CHO

#define TOTAL_CHO (NCHO_MODERN + NCHO_ANCIENT + NCHO_EXTA )

Definition at line 150 of file hangul.h.

◆ TOTAL_JONG

#define TOTAL_JONG (NJONG_MODERN + NJONG_ANCIENT + NJONG_EXTB)

Definition at line 152 of file hangul.h.

◆ TOTAL_JUNG

#define TOTAL_JUNG (NJUNG_MODERN + NJUNG_ANCIENT + NJUNG_EXTB)

Definition at line 151 of file hangul.h.

Function Documentation

◆ cho_variation()

int cho_variation	(	int	choseong,
		int	jungseong,
		int	jongseong
	)

Return the Johab 6/3/1 choseong variation for a syllable.

This function takes the two or three (if jongseong is included) letters that comprise a syllable and determine the variation of the initial consonant (choseong).

Each choseong has 6 variations:

Variation Occurrence

0 Choseong with a vertical vowel such as "A". 1 Choseong with a horizontal vowel such as "O". 2 Choseong with a vertical and horizontal vowel such as "WA". 3 Same as variation 0, but with jongseong (final consonant). 4 Same as variation 1, but with jongseong (final consonant). Also a horizontal vowel pointing down, such as U and YU. 5 Same as variation 2, but with jongseong (final consonant). Also a horizontal vowel pointing down with vertical element, such as WEO, WE, and WI.

In addition, if the vowel is horizontal and a downward-pointing stroke as in the modern letters U, WEO, WE, WI, and YU, and in archaic letters YU-YEO, YU-YE, YU-I, araea, and araea-i, then 3 is added to the initial variation of 0 to 2, resulting in a choseong variation of 3 to 5, respectively.

Parameters

[in]	choseong	The 1st letter in the syllable.
[in]	jungseong	The 2nd letter in the syllable.
[in]	jongseong	The 3rd letter in the syllable.

Returns: The choseong variation, 0 to 5.

Definition at line 350 of file unihangul-support.c.

                                                           {
   int cho_variation;  /* Return value */

   /*
      The Choseong cho_var is determined by the
      21 modern + 50 ancient Jungseong, and whether
      or not the syllable contains a final consonant
      (Jongseong).
   */
   static int choseong_var [TOTAL_JUNG + 1] = {
          /*
             Modern Jungseong in positions 0..20.
          */
/* Location Variations  Unicode Range    Vowel #    Vowel Names  */
/* -------- ----------  --------------   -------    -----------  */
/* 0x2FB */ 0, 0, 0, // U+1161..U+1163-->[ 0.. 2]  A,   AE,  YA
/* 0x304 */ 0, 0, 0, // U+1164..U+1166-->[ 3.. 5]  YAE, EO,  E
/* 0x30D */ 0, 0,    // U+1167..U+1168-->[ 6.. 7]  YEO, YE
/* 0x313 */ 1,       // U+1169        -->[ 8]      O
/* 0x316 */ 2, 2, 2, // U+116A..U+116C-->[ 9..11]  WA,  WAE, WE
/* 0x31F */ 1, 4,    // U+116D..U+116E-->[12..13]  YO,  U
/* 0x325 */ 5, 5, 5, // U+116F..U+1171-->[14..16]  WEO, WE,  WI
/* 0x32E */ 4, 1,    // U+1172..U+1173-->[17..18]  YU,  EU
/* 0x334 */ 2,       // U+1174        -->[19]      YI
/* 0x337 */ 0,       // U+1175        -->[20]      I
          /*
             Ancient Jungseong in positions 21..70.
          */
/* Location  Variations  Unicode Range    Vowel #       Vowel Names  */
/* --------  ----------  --------------   -------       -----------  */
/* 0x33A: */ 2, 5, 2, // U+1176..U+1178-->[21..23]   A-O,    A-U,   YA-O
/* 0x343: */ 2, 2, 5, // U+1179..U+117B-->[24..26]  YA-YO,  EO-O,   EU-U
/* 0x34C: */ 2, 2, 5, // U+117C..U+117E-->[27..29]  EO-EU, YEO-O,  YEO-U
/* 0x355: */ 2, 5, 5, // U+117F..U+1181-->[30..32]   O-EO,   O-E,    O-YE,
/* 0x35E: */ 4, 4, 2, // U+1182..U+1184-->[33..35]   O-O,    O-U,   YO-YA,
/* 0x367: */ 2, 2, 5, // U+1185..U+1187-->[36..38]  YO-YAE, YO-YEO, YO-O,
/* 0x370: */ 2, 5, 5, // U+1188..U+118A-->[39..41]  YO-I,    U-A,    U-AE,
/* 0x379: */ 5, 5, 5, // U+118B..U+118D-->[42..44] U-EO-EU,  U-YE,   U-U,
/* 0x382: */ 5, 5, 5, // U+118E..U+1190-->[45..47]  YU-A,   YU-EO,  YU-E,
/* 0x38B: */ 5, 5, 2, // U+1191..U+1193-->[48..50]  YU-YEO, YU-YE,  YU-U,
/* 0x394: */ 5, 2, 2, // U+1194..U+1196-->[51..53]  YU-I,   EU-U,   EU-EU,
/* 0x39D: */ 2, 0, 0, // U+1197..U+1199-->[54..56]  YI-U,    I-A,    I-YA,
/* 0x3A6: */ 2, 5, 2, // U+119A..U+119C-->[57..59]   I-O,    I-U,    I-EU,
/* 0x3AF: */ 0, 1, 2, // U+119D..U+119F-->[60..62] I-ARAEA, ARAEA, ARAEA-EO,
/* 0x3B8: */ 1, 2, 1, // U+11A0..U+11A2-->[63..65] ARAEA-U, ARAEA-I,SSANGARAEA,
/* 0x3C1: */ 2, 5, 0, // U+11A3..U+11A5-->[66..68]   A-EU,  YA-U,  YEO-YA,
/* 0x3CA: */ 2, 2,    // U+11A6..U+11A7-->[69..70]   O-YA,   O-YAE,
#ifdef EXTENDED_HANGUL
/* 0x3D0: */ 2, 4, 5, // U+D7B0..U+D7B2-->[71..73]   O-YEO,  O-O-I, YO-A,
/* 0x3D9: */ 5, 2, 5, // U+D7B3..U+D7B5-->[74..76]  YO-AE,  YO-EO,   U-YEO,
/* 0x3E2: */ 5, 5, 4, // U+D7B6..U+D7B8-->[77..79]   U-I-I, YU-AE,  YU-O,
/* 0x3EB: */ 5, 2, 5, // U+D7B9..U+D7BB-->[80..82]  EU-A,   EU-EO,  EU-E,
/* 0x3F4: */ 4, 2, 3, // U+D7BC..U+D7BE-->[83..85]  EU-O,    I-YA-O, I-YAE,
/* 0x3FD: */ 3, 3, 2, // U+D7BF..U+D7C1-->[86..88]   I-YEO,  I-YE,   I-O-I,
/* 0x406: */ 2, 2, 0, // U+D7C2..U+D7C4-->[89..91]   I-YO,   I-YU,   I-I,
/* 0x40F: */ 2, 2,    // U+D7C5..U+D7C6-->[92..93] ARAEA-A, ARAEA-E,
/* 0x415: */ -1       // Mark end of list of vowels.
#else
/* 0x310: */ -1       // Mark end of list of vowels.
#endif
   };


   if (jungseong < 0 || jungseong >= TOTAL_JUNG) {
      cho_variation = -1;
   }
   else {
      cho_variation = choseong_var [jungseong];
      if (choseong >= 0 && jongseong >= 0 && cho_variation < 3)
         cho_variation += 3;
   }


   return cho_variation;
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ combine_glyphs()

void combine_glyphs	(	unsigned *	glyph1,
		unsigned *	glyph2,
		unsigned *	combined_glyph
	)

Combine two glyphs into one glyph.

Parameters

[in]	glyph1	The first glyph to overlap.
[in]	glyph2	The second glyph to overlap.
[out]	combined_glyph	The returned combination glyph.

Definition at line 637 of file unihangul-support.c.

                                          {
   int i;

   for (i = 0; i < 16; i++)
      combined_glyph [i] = glyph1 [i] | glyph2 [i];

   return;
}

Here is the caller graph for this function:

◆ combined_jamo()

void combined_jamo	(	unsigned	glyph_table[MAX_GLYPHS][16],
		unsigned	cho,
		unsigned	jung,
		unsigned	jong,
		unsigned *	combined_glyph
	)

Convert Hangul Jamo choseong, jungseong, and jongseong into a glyph.

This function converts input Hangul choseong, jungseong, and jongseong Unicode code triplets into a Hangul syllable. Any of those with an out of range code point are assigned a blank glyph for combining.

This function performs the following steps:

 1) Determine the sequence number of choseong, jungseong,
    and jongseong, from 0 to the total number of choseong,
    jungseong, or jongseong, respectively, minus one.  The
    sequence for each is as follows:

    a) Choseong: Unicode code points of U+1100..U+115E
       and then U+A960..U+A97C.

    b) Jungseong: Unicode code points of U+1161..U+11A7
       and then U+D7B0..U+D7C6.

    c) Jongseong: Unicode code points of U+11A8..U+11FF
       and then U+D7CB..U+D7FB.

 2) From the choseong, jungseong, and jongseong sequence number,
    determine the variation of choseong and jungseong (there is
    only one jongseong variation, although it is shifted right
    by one column for some vowels with a pair of long vertical
    strokes on the right side).

 3) Convert the variation numbers for the three syllable
    components to index locations in the glyph array.

 4) Combine the glyph array glyphs into a syllable.

Parameters

[in]	glyph_table	The collection of all jamo glyphs.
[in]	cho	The choseong Unicode code point, 0 or 0x1100..0x115F.
[in]	jung	The jungseong Unicode code point, 0 or 0x1160..0x11A7.
[in]	jong	The jongseong Unicode code point, 0 or 0x11A8..0x11FF.
[out]	combined_glyph	The output glyph, 16 columns in each of 16 rows.

Definition at line 787 of file unihangul-support.c.

                                         {

   int i;  /* Loop variable. */
   int cho_num,   jung_num,   jong_num;
   int cho_group, jung_group, jong_group;
   int cho_index, jung_index, jong_index;

   unsigned tmp_glyph[16]; /* Hold shifted jongsung for wide vertical vowel. */

   int  cho_variation (int choseong, int jungseong, int jongseong);

   void combine_glyphs (unsigned *glyph1, unsigned *glyph2,
                        unsigned *combined_glyph);


   /* Choose a blank glyph for each syllalbe by default. */
   cho_index = jung_index = jong_index = 0x000;

   /*
      Convert Unicode code points to jamo sequence number
      of each letter, or -1 if letter is not in valid range.
   */
   if (cho >= 0x1100 && cho <= 0x115E)
      cho_num = cho - CHO_UNICODE_START;
   else if (cho >= CHO_EXTA_UNICODE_START &&
            cho < (CHO_EXTA_UNICODE_START + NCHO_EXTA))
      cho_num = cho - CHO_EXTA_UNICODE_START + NCHO_MODERN + NJONG_ANCIENT;
   else
      cho_num = -1;

   if (jung >= 0x1161 && jung <= 0x11A7)
      jung_num = jung - JUNG_UNICODE_START;
   else if (jung >= JUNG_EXTB_UNICODE_START &&
            jung < (JUNG_EXTB_UNICODE_START + NJUNG_EXTB))
      jung_num = jung - JUNG_EXTB_UNICODE_START + NJUNG_MODERN + NJUNG_ANCIENT;
   else
      jung_num = -1;

   if (jong >= 0x11A8 && jong <= 0x11FF)
      jong_num = jong - JONG_UNICODE_START;
   else if (jong >= JONG_EXTB_UNICODE_START &&
            jong < (JONG_EXTB_UNICODE_START + NJONG_EXTB))
      jong_num = jong - JONG_EXTB_UNICODE_START + NJONG_MODERN + NJONG_ANCIENT;
   else
      jong_num = -1;

   /*
      Choose initial consonant (choseong) variation based upon
      the vowel (jungseong) if both are specified.
   */
   if (cho_num < 0) {
      cho_index = cho_group = 0;  /* Use blank glyph for choseong. */
   }
   else {
      if (jung_num < 0 && jong_num < 0) {  /* Choseong is by itself. */
         cho_group = 0;
         if (cho_index < (NCHO_MODERN + NCHO_ANCIENT))
            cho_index = cho_num + JAMO_HEX;
         else  /* Choseong is in Hangul Jamo Extended-A range. */
            cho_index = cho_num - (NCHO_MODERN + NCHO_ANCIENT)
                                + JAMO_EXTA_HEX;
      }
      else {
         if (jung_num >= 0) {  /* Valid jungseong with choseong. */
            cho_group = cho_variation (cho_num, jung_num, jong_num);
         }
         else {  /* Invalid vowel; see if final consonant is valid. */
            /*
               If initial consonant and final consonant are specified,
               set cho_group to 4, which is the group tha would apply
               to a horizontal-only vowel such as Hangul "O", so the
               consonant appears full-width.
            */
            cho_group = 0;
            if (jong_num >= 0) {
               cho_group = 4;
            }
         }
         cho_index = CHO_HEX + CHO_VARIATIONS * cho_num +
                     cho_group;
      }  /* Choseong combined with jungseong and/or jongseong. */
   }  /* Valid choseong. */

   /*
      Choose vowel (jungseong) variation based upon the choseong
      and jungseong.
   */
   jung_index = jung_group = 0;  /* Use blank glyph for jungseong. */

   if (jung_num >= 0) {
      if (cho_num < 0 && jong_num < 0) {  /* Jungseong is by itself. */
         jung_group = 0;
         jung_index = jung_num + JUNG_UNICODE_START;
      }
      else {
         if (jong_num >= 0) {  /* If there is a final consonant. */
            if (jong_num == 3) /* Nieun; choose variation 3. */
               jung_group = 2;
            else
               jung_group = 1;
         }  /* Valid jongseong. */
         /* If valid choseong but no jongseong, choose jungseong variation 0. */
         else if (cho_num >= 0)
            jung_group = 0;
      }
      jung_index = JUNG_HEX + JUNG_VARIATIONS * jung_num + jung_group;
   }

   /*
      Choose final consonant (jongseong) based upon whether choseong
      and/or jungseong are present.
   */
   if (jong_num < 0) {
      jong_index = jong_group = 0;  /* Use blank glyph for jongseong. */
   }
   else {  /* Valid jongseong. */
      if (cho_num < 0 && jung_num < 0) {  /* Jongseong is by itself. */
         jong_group = 0;
         jong_index = jung_num + 0x4A8;
      }
      else {  /* There is only one jongseong variation if combined. */
         jong_group = 0;
         jong_index = JONG_HEX + JONG_VARIATIONS * jong_num +
                      jong_group;
      }
   }

   /*
      Now that we know the index locations for choseong, jungseong, and
      jongseong glyphs, combine them into one glyph.
   */
   combine_glyphs (glyph_table [cho_index], glyph_table [jung_index],
                   combined_glyph);

   if (jong_index > 0) {
      /*
         If the vowel has a vertical stroke that is one column
         away from the right border, shift this jongseung right
         by one column to line up with the rightmost vertical
         stroke in the vowel.
      */
      if (is_wide_vowel (jung_num)) {
         for (i = 0; i < 16; i++) {
            tmp_glyph [i] = glyph_table [jong_index] [i] >> 1;
         }
         combine_glyphs (combined_glyph, tmp_glyph,
                         combined_glyph);
      }
      else {
         combine_glyphs (combined_glyph, glyph_table [jong_index],
                         combined_glyph);
      }
   }

   return;
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ glyph_overlap()

int glyph_overlap	(	unsigned *	glyph1,
		unsigned *	glyph2
	)

See if two glyphs overlap.

Parameters

[in]	glyph1	The first glyph, as a 16-row bitmap.
[in]	glyph2	The second glyph, as a 16-row bitmap.

Returns: 0 if no overlaps between glyphs, 1 otherwise.

Definition at line 613 of file unihangul-support.c.

                                                   {
   int overlaps;  /* Return value; 0 if no overlaps, -1 if overlaps. */
   int i;

   /* Check for overlaps between the two glyphs. */

   i = 0;
   do {
      overlaps = (glyph1[i] & glyph2[i]) != 0;
      i++;
   }  while (i < 16 && overlaps == 0);

   return overlaps;
}

Here is the caller graph for this function:

◆ hangul_compose()

unsigned hangul_compose	(	int	initial,
		int	medial,
		int	final
	)

Compose a Hangul syllable into a code point, or 0 if none exists.

This function takes three letters that can form a modern Hangul syllable and returns the corresponding Unicode Hangul Syllables code point in the range 0xAC00 to 0xD7A3.

If a three-letter combination includes one or more archaic letters, it will not map into the Hangul Syllables range. In that case, the returned code point will be 0 to indicate that no valid Hangul Syllables code point exists.

Parameters

[in]	initial	The first letter (choseong), 0 to 18.
[in]	medial	The second letter (jungseong), 0 to 20.
[in]	final	The third letter (jongseong), 0 to 26 or -1 if none.

Returns: The Unicode Hangul Syllables code point, 0xAC00 to 0xD7A3.

Definition at line 201 of file unihangul-support.c.

                                                    {
   unsigned codept;


   if (initial >= 0 && initial <= 18 &&
       medial  >= 0 && medial  <= 20 &&
       final   >= 0 && final   <= 26) {

      codept  = 0xAC00;
      codept += initial * 21 * 28;
      codept += medial  * 28;
      codept += final + 1;
   }
   else {
      codept = 0;
   }

   return codept;
}

◆ hangul_decompose()

void hangul_decompose	(	unsigned	codept,
		int *	initial,
		int *	medial,
		int *	final
	)

Decompose a Hangul Syllables code point into three letters.

Decompose a Hangul Syllables code point (U+AC00..U+D7A3) into:

Choseong 0-19
Jungseong 0-20
Jongseong 0-27 or -1 if no jongseong

All letter values are set to -1 if the letters do not form a syllable in the Hangul Syllables range. This function only handles modern Hangul, because that is all that is in the Hangul Syllables range.

Parameters

[in]	codept	The Unicode code point to decode, from 0xAC00 to 0xD7A3.
[out]	initial	The 1st letter (choseong) in the syllable.
[out]	initial	The 2nd letter (jungseong) in the syllable.
[out]	initial	The 3rd letter (jongseong) in the syllable.

Definition at line 167 of file unihangul-support.c.

                                                                          {

   if (codept < 0xAC00 || codept > 0xD7A3) {
      *initial = *medial = *final = -1;
   }
   else {
      codept  -= 0xAC00;
      *initial =  codept / (28  * 21);
      *medial  = (codept /  28) % 21;
      *final   =  codept %  28 - 1;
   }

   return;
}

Here is the caller graph for this function:

◆ hangul_hex_indices()

void hangul_hex_indices	(	int	choseong,
		int	jungseong,
		int	jongseong,
		int *	cho_index,
		int *	jung_index,
		int *	jong_index
	)

Determine index values to the bitmaps for a syllable's components.

This function reads these input values for modern and ancient Hangul letters:

Choseong number (0 to the number of modern and archaic choseong - 1.
Jungseong number (0 to the number of modern and archaic jungseong - 1.
Jongseong number (0 to the number of modern and archaic jongseong - 1, or -1 if none.

It then determines the variation of each letter given the combination with the other two letters (or just choseong and jungseong if the jongseong value is -1).

These variations are then converted into index locations within the glyph array that was read in from the hangul-base.hex file. Those index locations can then be used to form a composite syllable.

There is no restriction to only use the modern Hangul letters.

Parameters

[in]	choseong	The 1st letter in the syllable.
[in]	jungseong	The 2nd letter in the syllable.
[in]	jongseong	The 3rd letter in the syllable, or -1 if none.
[out]	cho_index	Index location to the 1st letter variation from the hangul-base.hex file.
[out]	jung_index	Index location to the 2nd letter variation from the hangul-base.hex file.
[out]	jong_index	Index location to the 3rd letter variation from the hangul-base.hex file.

Definition at line 249 of file unihangul-support.c.

                                                                     {

   int cho_variation, jung_variation, jong_variation;  /* Letter variations */

   void hangul_variations (int choseong, int jungseong, int jongseong,
           int *cho_variation, int *jung_variation, int *jong_variation);


   hangul_variations (choseong, jungseong, jongseong,
                      &cho_variation, &jung_variation, &jong_variation);

    *cho_index = CHO_HEX +  choseong * CHO_VARIATIONS +  cho_variation;
   *jung_index = JUNG_HEX      + jungseong * JUNG_VARIATIONS      + jung_variation;;
   *jong_index = jongseong < 0 ? 0x0000 :
                 JONG_HEX + jongseong * JONG_VARIATIONS + jong_variation;

   return;
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ hangul_read_base16()

unsigned hangul_read_base16	(	FILE *	infp,
		unsigned	base[][16]
	)

Read hangul-base.hex file into a unsigned array.

Read a Hangul base .hex file with separate choseong, jungseong, and jongseong glyphs for syllable formation. The order is:

Empty glyph in 0x0000 position.
Initial consonants (choseong).
Medial vowels and dipthongs (jungseong).
Final consonants (jongseong).
Individual letter forms in isolation, not for syllable formation.

The letters are arranged with all variations for one letter before continuing to the next letter. In the current encoding, there are 6 variations of choseong, 3 of jungseong, and 1 of jongseong per letter.

Parameters

[in]	Input	file pointer; can be stdin.
[out]	Array	of bit patterns, with 16 16-bit values per letter.

Returns: The maximum code point value read in the file.

Definition at line 116 of file unihangul-support.c.

                                                     {
   unsigned codept;
   unsigned max_codept;
   int      i, j;
   char     instring[MAXLINE];


   max_codept = 0;

   while (fgets (instring, MAXLINE, infp) != NULL) {
      sscanf (instring, "%X", &codept);
      codept -= PUA_START;
      /* If code point is within range, add it */
      if (codept < MAX_GLYPHS) {
         /* Find the start of the glyph bitmap. */
         for (i = 1; instring[i] != '\0' && instring[i] != ':'; i++);
         if (instring[i] == ':') {
            i++;  /* Skip over ':' to get to start of bitmap. */
            for (j = 0; j < 16; j++) {
               sscanf (&instring[i], "%4X", &base[codept][j]);
               i += 4;
            }
            if (codept > max_codept) max_codept = codept;
         }
      }
   }

   return max_codept;
}

Here is the caller graph for this function:

◆ hangul_read_base8()

unsigned hangul_read_base8	(	FILE *	infp,
		unsigned char	base[][32]
	)

Read hangul-base.hex file into a unsigned char array.

Read a Hangul base .hex file with separate choseong, jungseong, and jongseong glyphs for syllable formation. The order is:

Empty glyph in 0x0000 position.
Initial consonants (choseong).
Medial vowels and dipthongs (jungseong).
Final consonants (jongseong).
Individual letter forms in isolation, not for syllable formation.

The letters are arranged with all variations for one letter before continuing to the next letter. In the current encoding, there are 6 variations of choseong, 3 of jungseong, and 1 of jongseong per letter.

Parameters

[in]	Input	file pointer; can be stdin.
[out]	Array	of bit patterns, with 32 8-bit values per letter.

Returns: The maximum code point value read in the file.

Definition at line 63 of file unihangul-support.c.

                                                         {
   unsigned codept;
   unsigned max_codept;
   int      i, j;
   char     instring[MAXLINE];


   max_codept = 0;

   while (fgets (instring, MAXLINE, infp) != NULL) {
      sscanf (instring, "%X", &codept);
      codept -= PUA_START;
      /* If code point is within range, add it */
      if (codept < MAX_GLYPHS) {
         /* Find the start of the glyph bitmap. */
         for (i = 1; instring[i] != '\0' && instring[i] != ':'; i++);
         if (instring[i] == ':') {
            i++;  /* Skip over ':' to get to start of bitmap. */
            for (j = 0; j < 32; j++) {
               sscanf (&instring[i], "%2hhX", &base[codept][j]);
               i += 2;
            }
            if (codept > max_codept) max_codept = codept;
         }
      }
   }

   return max_codept;
}

Here is the caller graph for this function:

◆ hangul_syllable()

void hangul_syllable	(	int	choseong,
		int	jungseong,
		int	jongseong,
		unsigned char	hangul_base[][32],
		unsigned char *	syllable
	)

Given letters in a Hangul syllable, return a glyph.

This function returns a glyph bitmap comprising up to three Hangul letters that form a syllable. It reads the three component letters (choseong, jungseong, and jungseong), then calls a function that determines the appropriate variation of each letter, returning the letter bitmap locations in the glyph array. Then these letter bitmaps are combined with a logical OR operation to produce a final bitmap, which forms a 16 row by 16 column bitmap glyph.

Parameters

[in]	choseong	The 1st letter in the composite glyph.
[in]	jungseong	The 2nd letter in the composite glyph.
[in]	jongseong	The 3rd letter in the composite glyph.
[in]	hangul_base	The glyphs read from the "hangul_base.hex" file.

Returns: syllable The composite syllable, as a 16 by 16 pixel bitmap.

Definition at line 583 of file unihangul-support.c.

                                                                           {

   int      i;  /* loop variable */
   int      cho_hex, jung_hex, jong_hex;
   unsigned char glyph_byte;


   hangul_hex_indices (choseong, jungseong, jongseong,
                      &cho_hex, &jung_hex, &jong_hex);

   for (i = 0; i < 32; i++) {
      glyph_byte  = hangul_base [cho_hex][i];
      glyph_byte |= hangul_base [jung_hex][i];
      if (jong_hex >= 0) glyph_byte |= hangul_base [jong_hex][i];
      syllable[i] = glyph_byte;
   }

   return;
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ hangul_variations()

void hangul_variations	(	int	choseong,
		int	jungseong,
		int	jongseong,
		int *	cho_var,
		int *	jung_var,
		int *	jong_var
	)

Determine the variations of each letter in a Hangul syllable.

Given the three letters that will form a syllable, return the variation of each letter used to form the composite glyph.

This function can determine variations for both modern and archaic Hangul letters; it is not limited to only the letters combinations that comprise the Unicode Hangul Syllables range.

This function reads these input values for modern and ancient Hangul letters:

Choseong number (0 to the number of modern and archaic choseong - 1.
Jungseong number (0 to the number of modern and archaic jungseong - 1.
Jongseong number (0 to the number of modern and archaic jongseong - 1, or -1 if none.

It then determines the variation of each letter given the combination with the other two letters (or just choseong and jungseong if the jongseong value is -1).

Parameters

[in]	choseong	The 1st letter in the syllable.
[in]	jungseong	The 2nd letter in the syllable.
[in]	jongseong	The 3rd letter in the syllable, or -1 if none.
[out]	cho_var	Variation of the 1st letter from the hangul-base.hex file.
[out]	jung_var	Variation of the 2nd letter from the hangul-base.hex file.
[out]	jong_var	Variation of the 3rd letter from the hangul-base.hex file.

Definition at line 298 of file unihangul-support.c.

                                                               {

   int  cho_variation (int choseong, int jungseong, int jongseong);
   int jung_variation (int choseong, int jungseong, int jongseong);
   int jong_variation (int choseong, int jungseong, int jongseong);

   /*
      Find the variation for each letter component.
   */
    *cho_var =  cho_variation (choseong, jungseong, jongseong);
   *jung_var = jung_variation (choseong, jungseong, jongseong);
   *jong_var = jong_variation (choseong, jungseong, jongseong);


   return;
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ is_wide_vowel()

int is_wide_vowel ( int vowel )

Whether vowel has rightmost vertical stroke to the right.

Parameters

[in] vowel Vowel number, from 0 to TOTAL_JUNG - 1.

Returns: 1 if this vowel's vertical stroke is wide on the right side; else 0.

Definition at line 434 of file unihangul-support.c.

                          {
   int retval;  /* Return value. */

   static int wide_vowel [TOTAL_JUNG + 1] = {
          /*
             Modern Jungseong in positions 0..20.
          */
/* Location Variations  Unicode Range    Vowel #    Vowel Names  */
/* -------- ----------  --------------   -------    -----------  */
/* 0x2FB */ 0, 1, 0, // U+1161..U+1163-->[ 0.. 2]  A,   AE,  YA
/* 0x304 */ 1, 0, 1, // U+1164..U+1166-->[ 3.. 5]  YAE, EO,  E
/* 0x30D */ 0, 1,    // U+1167..U+1168-->[ 6.. 7]  YEO, YE
/* 0x313 */ 0,       // U+1169        -->[ 8]      O
/* 0x316 */ 0, 1, 0, // U+116A..U+116C-->[ 9..11]  WA,  WAE, WE
/* 0x31F */ 0, 0,    // U+116D..U+116E-->[12..13]  YO,  U
/* 0x325 */ 0, 1, 0, // U+116F..U+1171-->[14..16]  WEO, WE,  WI
/* 0x32E */ 0, 0,    // U+1172..U+1173-->[17..18]  YU,  EU
/* 0x334 */ 0,       // U+1174        -->[19]      YI
/* 0x337 */ 0,       // U+1175        -->[20]      I
          /*
             Ancient Jungseong in positions 21..70.
          */
/* Location  Variations  Unicode Range    Vowel #       Vowel Names  */
/* --------  ----------  --------------   -------       -----------  */
/* 0x33A: */ 0, 0, 0, // U+1176..U+1178-->[21..23]   A-O,    A-U,   YA-O
/* 0x343: */ 0, 0, 0, // U+1179..U+117B-->[24..26]  YA-YO,  EO-O,   EU-U
/* 0x34C: */ 0, 0, 0, // U+117C..U+117E-->[27..29]  EO-EU, YEO-O,  YEO-U
/* 0x355: */ 0, 1, 1, // U+117F..U+1181-->[30..32]   O-EO,   O-E,    O-YE,
/* 0x35E: */ 0, 0, 0, // U+1182..U+1184-->[33..35]   O-O,    O-U,   YO-YA,
/* 0x367: */ 1, 0, 0, // U+1185..U+1187-->[36..38]  YO-YAE, YO-YEO, YO-O,
/* 0x370: */ 0, 0, 1, // U+1188..U+118A-->[39..41]  YO-I,    U-A,    U-AE,
/* 0x379: */ 0, 1, 0, // U+118B..U+118D-->[42..44] U-EO-EU,  U-YE,   U-U,
/* 0x382: */ 0, 0, 1, // U+118E..U+1190-->[45..47]  YU-A,   YU-EO,  YU-E,
/* 0x38B: */ 0, 1, 0, // U+1191..U+1193-->[48..50]  YU-YEO, YU-YE,  YU-U,
/* 0x394: */ 0, 0, 0, // U+1194..U+1196-->[51..53]  YU-I,   EU-U,   EU-EU,
/* 0x39D: */ 0, 0, 0, // U+1197..U+1199-->[54..56]  YI-U,    I-A,    I-YA,
/* 0x3A6: */ 0, 0, 0, // U+119A..U+119C-->[57..59]   I-O,    I-U,    I-EU,
/* 0x3AF: */ 0, 0, 0, // U+119D..U+119F-->[60..62] I-ARAEA, ARAEA, ARAEA-EO,
/* 0x3B8: */ 0, 0, 0, // U+11A0..U+11A2-->[63..65] ARAEA-U, ARAEA-I,SSANGARAEA,
/* 0x3C1: */ 0, 0, 0, // U+11A3..U+11A5-->[66..68]   A-EU,  YA-U,  YEO-YA,
/* 0x3CA: */ 0, 1,    // U+11A6..U+11A7-->[69..70]   O-YA,   O-YAE
#ifdef EXTENDED_HANGUL
/* 0x3D0: */ 0, 0, 0, // U+D7B0..U+D7B2-->[71..73]   O-YEO,  O-O-I, YO-A,
/* 0x3D9: */ 1, 0, 0, // U+D7B3..U+D7B5-->[74..76]  YO-AE,  YO-EO,   U-YEO,
/* 0x3E2: */ 1, 1, 0, // U+D7B6..U+D7B8-->[77..79]   U-I-I, YU-AE,  YU-O,
/* 0x3EB: */ 0, 0, 1, // U+D7B9..U+D7BB-->[80..82]  EU-A,   EU-EO,  EU-E,
/* 0x3F4: */ 0, 0, 1, // U+D7BC..U+D7BE-->[83..85]  EU-O,    I-YA-O, I-YAE,
/* 0x3FD: */ 0, 1, 0, // U+D7BF..U+D7C1-->[86..88]   I-YEO,  I-YE,   I-O-I,
/* 0x406: */ 0, 0, 1, // U+D7C2..U+D7C4-->[89..91]   I-YO,   I-YU,   I-I,
/* 0x40F: */ 0, 1,    // U+D7C5..U+D7C6-->[92..93] ARAEA-A, ARAEA-E,
/* 0x415: */ -1       // Mark end of list of vowels.
#else
/* 0x310: */ -1       // Mark end of list of vowels.
#endif
   };


   if (vowel >= 0 && vowel < TOTAL_JUNG) {
      retval = wide_vowel [vowel];
   }
   else {
      retval = 0;
   }


   return retval;
}

Here is the caller graph for this function:

◆ jong_variation()

int jong_variation	(	int	choseong,
		int	jungseong,
		int	jongseong
	)

inline

Return the Johab 6/3/1 jongseong variation.

There is only one jongseong variation, so this function always returns 0. It is a placeholder function for possible future adaptation to other johab encodings.

Parameters

[in]	choseong	The 1st letter in the syllable.
[in]	jungseong	The 2nd letter in the syllable.
[in]	jongseong	The 3rd letter in the syllable.

Returns: The jongseong variation, always 0.

Definition at line 558 of file unihangul-support.c.

                                                            {

   return 0;  /* There is only one Jongseong variation. */
}

Here is the caller graph for this function:

◆ jung_variation()

int jung_variation	(	int	choseong,
		int	jungseong,
		int	jongseong
	)

inline

Return the Johab 6/3/1 jungseong variation.

This function takes the two or three (if jongseong is included) letters that comprise a syllable and determine the variation of the vowel (jungseong).

Each jungseong has 3 variations:

Variation Occurrence

0 Jungseong with only chungseong (no jungseong). 1 Jungseong with chungseong and jungseong (except nieun). 2 Jungseong with chungseong and jungseong nieun.

Parameters

[in]	choseong	The 1st letter in the syllable.
[in]	jungseong	The 2nd letter in the syllable.
[in]	jongseong	The 3rd letter in the syllable.

Returns: The jungseong variation, 0 to 2.

Definition at line 524 of file unihangul-support.c.

                                                            {
   int jung_variation;  /* Return value */

   if (jungseong < 0) {
      jung_variation = -1;
   }
   else {
      jung_variation = 0;
      if (jongseong >= 0) {
         if (jongseong == 3)
            jung_variation = 2;  /* Vowel for final Nieun. */
         else
            jung_variation = 1;
      }
   }


   return jung_variation;
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ one_jamo()

void one_jamo	(	unsigned	glyph_table[MAX_GLYPHS][16],
		unsigned	jamo,
		unsigned *	jamo_glyph
	)

Convert Hangul Jamo choseong, jungseong, and jongseong into a glyph.

Parameters

[in]	glyph_table	The collection of all jamo glyphs.
[in]	jamo	The Unicode code point, 0 or 0x1100..0x115F.
[out]	jamo_glyph	The output glyph, 16 columns in each of 16 rows.

Definition at line 717 of file unihangul-support.c.

                                               {

   int i;  /* Loop variable */
   int glyph_index;  /* Location of glyph in "hangul-base.hex" array */


   /* If jamo is invalid range, use blank glyph, */
   if (jamo >= 0x1100 && jamo <= 0x11FF) {
      glyph_index = jamo - 0x1100 + JAMO_HEX;
   }
   else if (jamo >= 0xA960 && jamo <= 0xA97F) {
      glyph_index = jamo - 0xA960 + JAMO_EXTA_HEX;
   }
   else if (jamo >= 0xD7B0 && jamo <= 0xD7FF) {
      glyph_index = jamo - 0x1100 + JAMO_EXTB_HEX;
   }
   else {
      glyph_index = 0;
   }

   for (i = 0; i < 16; i++) {
      jamo_glyph [i] = glyph_table [glyph_index] [i];
   }

   return;
}

◆ print_glyph_hex()

void print_glyph_hex	(	FILE *	fp,
		unsigned	codept,
		unsigned *	this_glyph
	)

Print one glyph in Unifont hexdraw hexadecimal string style.

Parameters

[in]	fp	The file pointer for output.
[in]	codept	The Unicode code point to print with the glyph.
[in]	this_glyph	The 16-row by 16-column glyph to print.

Definition at line 692 of file unihangul-support.c.

                                                                  {

   int i;


   fprintf (fp, "%04X:", codept);

   /* for each this_glyph row */
   for (i = 0; i < 16; i++) {
      fprintf (fp, "%04X", this_glyph[i]);
   }
   fputc ('\n', fp);

   return;
}

Here is the caller graph for this function:

◆ print_glyph_txt()

void print_glyph_txt	(	FILE *	fp,
		unsigned	codept,
		unsigned *	this_glyph
	)

Print one glyph in Unifont hexdraw plain text style.

Parameters

[in]	fp	The file pointer for output.
[in]	codept	The Unicode code point to print with the glyph.
[in]	this_glyph	The 16-row by 16-column glyph to print.

Definition at line 656 of file unihangul-support.c.

                                                                  {
   int i;
   unsigned mask;


   fprintf (fp, "%04X:", codept);

   /* for each this_glyph row */
   for (i = 0; i < 16; i++) {
      mask = 0x8000;
      fputc ('\t', fp);
      while (mask != 0x0000) {
         if (mask & this_glyph [i]) {
            fputc ('#', fp);
         }
         else {
            fputc ('-', fp);
         }
         mask >>= 1;  /* shift to next bit in this_glyph row */
      }
      fputc ('\n', fp);
   }
   fputc ('\n', fp);

   return;
}

Here is the caller graph for this function:

Macros

Functions

Detailed Description

Macro Definition Documentation

◆ CHO_ANCIENT_HEX

◆ CHO_EXTA_HEX

◆ CHO_EXTA_UNICODE_END

◆ CHO_EXTA_UNICODE_START

◆ CHO_HEX

◆ CHO_LAST_HEX

◆ CHO_UNICODE_END

◆ CHO_UNICODE_START

◆ CHO_VARIATIONS

◆ EXTENDED_HANGUL

◆ JAMO_END

◆ JAMO_EXTA_END

◆ JAMO_EXTA_HEX

◆ JAMO_EXTB_END

◆ JAMO_EXTB_HEX

◆ JAMO_HEX

◆ JONG_ANCIENT_HEX

◆ JONG_EXTB_HEX

◆ JONG_EXTB_UNICODE_END

◆ JONG_EXTB_UNICODE_START

◆ JONG_HEX

◆ JONG_LAST_HEX

◆ JONG_UNICODE_END

◆ JONG_UNICODE_START

◆ JONG_VARIATIONS

◆ JUNG_ANCIENT_HEX

◆ JUNG_EXTB_HEX

◆ JUNG_EXTB_UNICODE_END

◆ JUNG_EXTB_UNICODE_START

◆ JUNG_HEX

◆ JUNG_LAST_HEX

◆ JUNG_UNICODE_END

◆ JUNG_UNICODE_START

◆ JUNG_VARIATIONS

◆ MAX_GLYPHS

◆ MAXLINE

◆ NCHO_ANCIENT

◆ NCHO_EXTA

◆ NCHO_EXTA_RSRVD

◆ NCHO_MODERN

◆ NJONG_ANCIENT

◆ NJONG_EXTB

◆ NJONG_EXTB_RSRVD

◆ NJONG_MODERN

◆ NJUNG_ANCIENT

◆ NJUNG_EXTB

◆ NJUNG_EXTB_RSRVD

◆ NJUNG_MODERN

◆ PUA_END

◆ PUA_START

◆ TOTAL_CHO

◆ TOTAL_JONG

◆ TOTAL_JUNG

Function Documentation

◆ cho_variation()

◆ combine_glyphs()

◆ combined_jamo()

◆ glyph_overlap()

◆ hangul_compose()

◆ hangul_decompose()

◆ hangul_hex_indices()

◆ hangul_read_base16()

◆ hangul_read_base8()

◆ hangul_syllable()

◆ hangul_variations()

◆ is_wide_vowel()

◆ jong_variation()

◆ jung_variation()

◆ one_jamo()

◆ print_glyph_hex()

◆ print_glyph_txt()
