unigencircles.c File Reference

unigencircles - Superimpose dashed combining circles on combining glyphs More...

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <ctype.h>

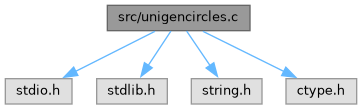

Include dependency graph for unigencircles.c:

Go to the source code of this file.

Macros

#define MAXSTRING   256
 Maximum input line length - 1.


Functions

int main (int argc, char **argv)
 The main function.

void add_single_circle (char *glyphstring)
 Superimpose a single-width dashed combining circle on a glyph bitmap.

void add_double_circle (char *glyphstring, int offset)
 Superimpose a double-width dashed combining circle on a glyph bitmap.


Detailed Description

unigencircles - Superimpose dashed combining circles on combining glyphs

Author
Paul Hardy
Copyright
Copyright (C) 2013, Paul Hardy.

Definition in file unigencircles.c.

Macro Definition Documentation

◆ MAXSTRING

#define MAXSTRING   256

Maximum input line length - 1.

Definition at line 66 of file unigencircles.c.

Function Documentation

◆ add_double_circle()

void add_double_circle ( char *  glyphstring,
int  offset
)

Superimpose a double-width dashed combining circle on a glyph bitmap.

Parameters
[in,out]glyphstringA double-width glyph, 16x16 pixels.

Definition at line 225 of file unigencircles.c.

226{
227
228 char newstring[256];
229 /* Circle hex string pattern is "00000008000024004200240000000000" */
230
231 /* For double diacritical glyphs (offset = -8) */
232 /* Combining circle is left-justified. */
233 char circle08[64]={0x0,0x0,0x0,0x0, /* row 1 */
234 0x0,0x0,0x0,0x0, /* row 2 */
235 0x0,0x0,0x0,0x0, /* row 3 */
236 0x0,0x0,0x0,0x0, /* row 4 */
237 0x0,0x0,0x0,0x0, /* row 5 */
238 0x0,0x0,0x0,0x0, /* row 6 */
239 0x2,0x4,0x0,0x0, /* row 7 */
240 0x0,0x0,0x0,0x0, /* row 8 */
241 0x4,0x2,0x0,0x0, /* row 9 */
242 0x0,0x0,0x0,0x0, /* row 10 */
243 0x2,0x4,0x0,0x0, /* row 11 */
244 0x0,0x0,0x0,0x0, /* row 12 */
245 0x0,0x0,0x0,0x0, /* row 13 */
246 0x0,0x0,0x0,0x0, /* row 14 */
247 0x0,0x0,0x0,0x0, /* row 15 */
248 0x0,0x0,0x0,0x0}; /* row 16 */
249
250 /* For all other combining glyphs (offset = -16) */
251 /* Combining circle is centered in 16 columns. */
252 char circle16[64]={0x0,0x0,0x0,0x0, /* row 1 */
253 0x0,0x0,0x0,0x0, /* row 2 */
254 0x0,0x0,0x0,0x0, /* row 3 */
255 0x0,0x0,0x0,0x0, /* row 4 */
256 0x0,0x0,0x0,0x0, /* row 5 */
257 0x0,0x0,0x0,0x0, /* row 6 */
258 0x0,0x2,0x4,0x0, /* row 7 */
259 0x0,0x0,0x0,0x0, /* row 8 */
260 0x0,0x4,0x2,0x0, /* row 9 */
261 0x0,0x0,0x0,0x0, /* row 10 */
262 0x0,0x2,0x4,0x0, /* row 11 */
263 0x0,0x0,0x0,0x0, /* row 12 */
264 0x0,0x0,0x0,0x0, /* row 13 */
265 0x0,0x0,0x0,0x0, /* row 14 */
266 0x0,0x0,0x0,0x0, /* row 15 */
267 0x0,0x0,0x0,0x0}; /* row 16 */
268
269 char *circle; /* points into circle16 or circle08 */
270
271 int digit1, digit2; /* corresponding digits in each string */
272
273 int i; /* index variables */
274
275
276 /*
277 Determine if combining circle is left-justified (offset = -8)
278 or centered (offset = -16).
279 */
280 circle = (offset >= -8) ? circle08 : circle16;
281
282 /* for each character position, OR the corresponding circle glyph value */
283 for (i = 0; i < 64; i++) {
284 glyphstring[i] = toupper (glyphstring[i]);
285
286 /* Convert ASCII character to a hexadecimal integer */
287 digit1 = (glyphstring[i] <= '9') ?
288 (glyphstring[i] - '0') : (glyphstring[i] - 'A' + 0xA);
289
290 /* Superimpose dashed circle */
291 digit2 = digit1 | circle[i];
292
293 /* Convert hexadecimal integer to an ASCII character */
294 newstring[i] = (digit2 <= 9) ?
295 ('0' + digit2) : ('A' + digit2 - 0xA);
296 }
297
298 /* Terminate string for output */
299 newstring[i++] = '\n';
300 newstring[i++] = '\0';
301
302 memcpy (glyphstring, newstring, i);
303
304 return;
305}
Here is the caller graph for this function:

◆ add_single_circle()

void add_single_circle ( char *  glyphstring)

Superimpose a single-width dashed combining circle on a glyph bitmap.

Parameters
[in,out]glyphstringA single-width glyph, 8x16 pixels.

Definition at line 167 of file unigencircles.c.

168{
169
170 char newstring[256];
171 /* Circle hex string pattern is "00000008000024004200240000000000" */
172 char circle[32]={0x0,0x0, /* row 1 */
173 0x0,0x0, /* row 2 */
174 0x0,0x0, /* row 3 */
175 0x0,0x0, /* row 4 */
176 0x0,0x0, /* row 5 */
177 0x0,0x0, /* row 6 */
178 0x2,0x4, /* row 7 */
179 0x0,0x0, /* row 8 */
180 0x4,0x2, /* row 9 */
181 0x0,0x0, /* row 10 */
182 0x2,0x4, /* row 11 */
183 0x0,0x0, /* row 12 */
184 0x0,0x0, /* row 13 */
185 0x0,0x0, /* row 14 */
186 0x0,0x0, /* row 15 */
187 0x0,0x0}; /* row 16 */
188
189 int digit1, digit2; /* corresponding digits in each string */
190
191 int i; /* index variables */
192
193 /* for each character position, OR the corresponding circle glyph value */
194 for (i = 0; i < 32; i++) {
195 glyphstring[i] = toupper (glyphstring[i]);
196
197 /* Convert ASCII character to a hexadecimal integer */
198 digit1 = (glyphstring[i] <= '9') ?
199 (glyphstring[i] - '0') : (glyphstring[i] - 'A' + 0xA);
200
201 /* Superimpose dashed circle */
202 digit2 = digit1 | circle[i];
203
204 /* Convert hexadecimal integer to an ASCII character */
205 newstring[i] = (digit2 <= 9) ?
206 ('0' + digit2) : ('A' + digit2 - 0xA);
207 }
208
209 /* Terminate string for output */
210 newstring[i++] = '\n';
211 newstring[i++] = '\0';
212
213 memcpy (glyphstring, newstring, i);
214
215 return;
216}
Here is the caller graph for this function:

◆ main()

int main ( int  argc,
char **  argv
)

The main function.

Parameters
[in]argcThe count of command line arguments.
[in]argvPointer to array of command line arguments.
Returns
This program exits with status EXIT_SUCCESS.

Definition at line 77 of file unigencircles.c.

78{
79
80 char teststring[MAXSTRING]; /* current input line */
81 unsigned loc; /* Unicode code point of current input line */
82 int offset; /* offset value of a combining character */
83 char *gstart; /* glyph start, pointing into teststring */
84
85 char combining[0x110000]; /* 1 --> combining glyph; 0 --> non-combining */
86 char x_offset [0x110000]; /* second value in *combining.txt files */
87
88 void add_single_circle(char *); /* add a single-width dashed circle */
89 void add_double_circle(char *, int); /* add a double-width dashed circle */
90
91 FILE *infilefp;
92
93 /*
94 if (argc != 3) {
95 fprintf (stderr,
96 "\n\nUsage: %s combining.txt nonprinting.hex < unifont.hex > unifontfull.hex\n\n");
97 exit (EXIT_FAILURE);
98 }
99 */
100
101 /*
102 Read the combining characters list.
103 */
104 /* Start with no combining code points flagged */
105 memset (combining, 0, 0x110000 * sizeof (char));
106 memset (x_offset , 0, 0x110000 * sizeof (char));
107
108 if ((infilefp = fopen (argv[1],"r")) == NULL) {
109 fprintf (stderr,"ERROR - combining characters file %s not found.\n\n",
110 argv[1]);
111 exit (EXIT_FAILURE);
112 }
113
114 /* Flag list of combining characters to add a dashed circle. */
115 while (fscanf (infilefp, "%X:%d", &loc, &offset) != EOF) {
116 /*
117 U+01107F and U+01D1A0 are not defined as combining characters
118 in Unicode; they were added in a combining.txt file as the
119 only way to make them look acceptable in proximity to other
120 glyphs in their script.
121 */
122 if (loc != 0x01107F && loc != 0x01D1A0) {
123 combining[loc] = 1;
124 x_offset [loc] = offset;
125 }
126 }
127 fclose (infilefp); /* all done reading combining.txt */
128
129 /* Now read the non-printing glyphs; they never have dashed circles */
130 if ((infilefp = fopen (argv[2],"r")) == NULL) {
131 fprintf (stderr,"ERROR - nonprinting characters file %s not found.\n\n",
132 argv[1]);
133 exit (EXIT_FAILURE);
134 }
135
136 /* Reset list of nonprinting characters to avoid adding a dashed circle. */
137 while (fscanf (infilefp, "%X:%*s", &loc) != EOF) combining[loc] = 0;
138
139 fclose (infilefp); /* all done reading nonprinting.hex */
140
141 /*
142 Read the hex glyphs.
143 */
144 teststring[MAXSTRING - 1] = '\0'; /* so there's no chance we leave array */
145 while (fgets (teststring, MAXSTRING-1, stdin) != NULL) {
146 sscanf (teststring, "%X", &loc); /* loc == the Uniocde code point */
147 gstart = strchr (teststring,':') + 1; /* start of glyph bitmap */
148 if (combining[loc]) { /* if a combining character */
149 if (strlen (gstart) < 35)
150 add_single_circle (gstart); /* single-width */
151 else
152 add_double_circle (gstart, x_offset[loc]); /* double-width */
153 }
154 printf ("%s", teststring); /* output the new character .hex string */
155 }
156
157 exit (EXIT_SUCCESS);
158}
add_double_circle
void add_double_circle(char *glyphstring, int offset)
Superimpose a double-width dashed combining circle on a glyph bitmap.
Definition: unigencircles.c:225
MAXSTRING
#define MAXSTRING
Maximum input line length - 1.
Definition: unigencircles.c:66
add_single_circle
void add_single_circle(char *glyphstring)
Superimpose a single-width dashed combining circle on a glyph bitmap.
Definition: unigencircles.c:167
Here is the call graph for this function:
